M50-4802445

Headers, Male Pins Overview

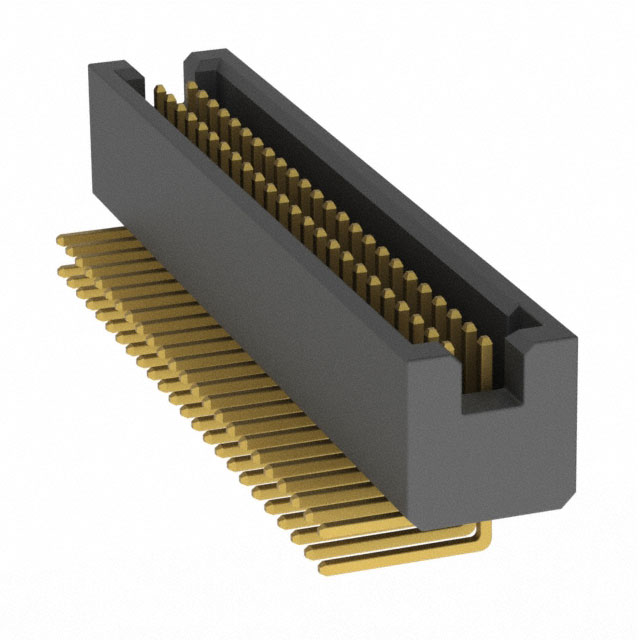

The M50-4802445 is a board-to-board connector header manufactured by Harwin Inc. under the Archer M50 series. It features a dual in-line (DIL) configuration with 48 positions arranged in two rows. The component utilizes a 1.27 mm pitch and a 1.27 mm row spacing to support high-density interconnections. Designed for surface-mount technology (SMT), it incorporates gold-plated contacts to ensure reliable signal transmission. The housing is constructed from black thermoplastic material, providing structural integrity and electrical insulation.

Headers, Male Pins Feature Summary

• Dual in-line architecture supporting high-density board-to-board connections
• Gold-plated contact surfaces for enhanced conductivity and corrosion resistance
• Surface-mount design optimized for automated assembly processes

Headers, Male Pins Applications

• High-density electronic module interconnections
• Industrial control system circuit boards
• Telecommunications equipment backplanes

Headers, Male Pins Procurement Notes

Verify that the specific part number matches the required 48-position DIL configuration and 1.27mm pitch specifications. Confirm compliance with RoHS directives and lead-free requirements before integration. Ensure compatibility with standard SMT reflow profiles and check for any obsolescence notices or last-time-buy notifications associated with this component variant.

Headers, Male Pins Selection Notes

Select this component when a robust, high-pin-count solution is required for vertical or horizontal board stacking. The gold plating offers superior performance in environments where oxidation resistance is critical. Consider the mechanical stability provided by the shrouded design and the precision of the 1.27mm pitch for tight space constraints.

Headers, Male Pins Part Context

This connector belongs to the Archer M50 family, known for its reliability in demanding applications. The series offers various configurations to meet diverse connectivity needs. The M50-4802445 specifically addresses the need for dense, high-performance connections in compact electronic assemblies, leveraging Harwin's expertise in precision connector manufacturing.

Headers, Male Pins Replacement Considerations

Compatible substitutes include other Harwin M50 series headers with matching 48-position counts and 1.27mm pitch. Verify pinout orientation and mounting style compatibility before substitution. Cross-reference with equivalent parts from other manufacturers ensuring identical dimensional and electrical characteristics.
