M50-4803545

Headers, Male Pins Overview

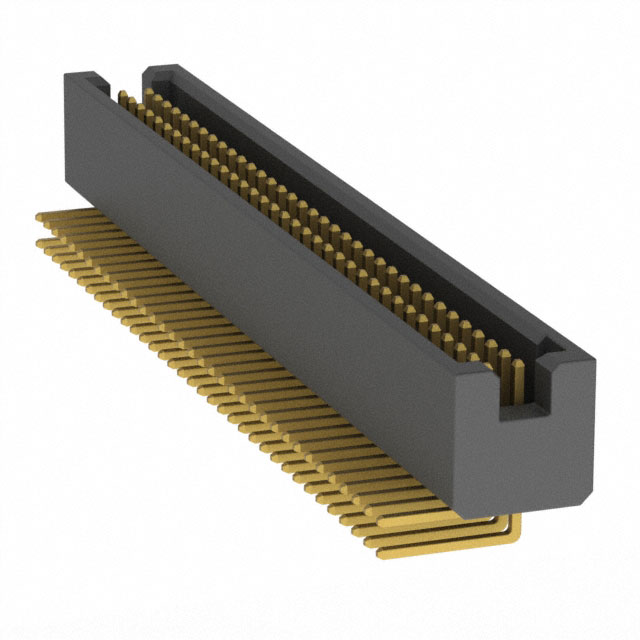

The M50-4803545 is a rectangular connector header manufactured by Harwin Inc., belonging to the Archer series. It features a right-angle through-hole mounting style with 70 positions and a 1.27 mm (0.05 inch) pitch. The component utilizes male pin contacts with gold plating, designed for reliable signal transmission in board-to-board applications. Operating within a temperature range of -40°C to +105°C, it ensures stability under varying environmental conditions.

Headers, Male Pins Feature Summary

• Right-angle configuration facilitates compact PCB layout integration
• Gold-plated male pins ensure durable electrical connectivity
• High-density 70-position arrangement supports complex circuit routing

Headers, Male Pins Applications

• Board-to-board interconnections
• Industrial control systems
• Telecommunications equipment

Headers, Male Pins Procurement Notes

Verify the exact part number against official Harwin documentation to confirm specifications. Ensure compatibility with mating sockets regarding pitch and contact type. Check for RoHS compliance status if required by project standards. Confirm availability as distribution status may vary across regions.

Headers, Male Pins Selection Notes

Select this component when a high-density, right-angle header is required for space-constrained designs. The 1.27 mm pitch allows for significant I/O density on standard PCBs. Consider the mechanical profile and mounting orientation relative to adjacent components during layout planning.

Headers, Male Pins Part Context

This part belongs to the Harwin Archer M50 series, known for robust performance in demanding environments. The series offers various configurations including shrouded and unshrouded options. The M50-4803545 specifically addresses needs for high-pin-count right-angle connections.

Headers, Male Pins Replacement Considerations

Direct substitutes must match the 1.27 mm pitch, 70 position count, right-angle orientation, and male pin configuration. Verify housing material and plating thickness requirements before substitution.
