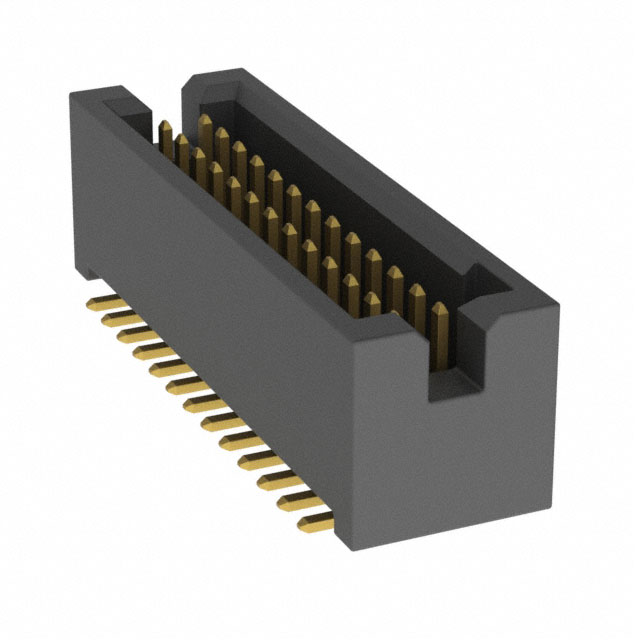

M50-4901345

Description：CONN HEADER SMD 26POS 1.27MM
Series：Archer M50
Mfr：Harwin Inc.
Package：Tube

SKU:c94040205542 Category: Headers, Male Pins Brand: Harwin Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

M50-4901345 is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists Harwin Inc.. Its product description is CONN HEADER SMD 26POS 1.27MM. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for M50-4901345

Description：CONN HEADER SMD 26POS 1.27MM
Series：Archer M50
Mfr：Harwin Inc.
Package：Tube
Connector Type：Header
Contact Type：Male Pin
Pitch - Mating：0.050" (1.27mm)
Number of Positions：26
Number of Rows：2
Row Spacing - Mating：0.050" (1.27mm)
Number of Positions Loaded：All
Style：Board to Board
Shrouding：Shrouded - 4 Wall
Mounting Type：Surface Mount
Termination：Solder
Fastening Type：Push-Pull
Contact Length - Mating：-
Contact Length - Post：-
Overall Contact Length：-
Insulation Height：0.224" (5.69mm)
Contact Shape：Square
Contact Finish - Mating：Gold
Contact Finish Thickness - Mating：-
Contact Finish - Post：Gold
Contact Material：Copper Alloy
Insulation Material：Liquid Crystal Polymer (LCP)
Features：-
Operating Temperature：-40°C ~ 105°C
Ingress Protection：-
Material Flammability Rating：UL94 V-0
Insulation Color：Black
Current Rating (Amps)：1A per Contact
Voltage Rating：-

Headers, Male Pins datasheet and documents for M50-4901345

M50-4901345

Headers, Male Pins Overview

The Harwin M50-4901345 is a surface-mount shrouded header connector from the Archer M50 series. It features 26 positions arranged in a dual inline configuration with two rows. The component utilizes a 1.27 mm (0.05 inch) pitch and includes gold-plated male pin contacts for reliable signal transmission. Designed for vertical installation, it supports board-to-board connections with a voltage rating of 300 V. The unit operates within a temperature range of -40°C to +105°C.

Headers, Male Pins Feature Summary

Shrouded design provides mechanical stability and alignment during assembly
Gold-plated contacts ensure durable electrical performance
Surface mount termination facilitates automated PCB placement

Headers, Male Pins Applications

Board-to-board interconnections
Wire-to-board assemblies
High-density electronic circuitry

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix against the official datasheet to confirm contact plating thickness and housing material variations. Ensure the selected variant matches the required current rating and thermal specifications for the target application environment. Cross-reference the manufacturer part number with authorized distributor catalogs to confirm availability and authenticity before finalizing procurement orders.

Headers, Male Pins Selection Notes

Select this component when a low-profile, high-reliability connection is required for dense PCB layouts. The 1.27 mm pitch allows for compact designs while maintaining adequate spacing. Consider the shrouded structure for improved mating accuracy compared to open headers. Evaluate the SMT mounting style against manual assembly requirements to determine suitability for production volume and equipment capabilities.

Headers, Male Pins Part Context

This connector belongs to the Archer M50 series, which focuses on space-saving solutions for modern electronics. The series offers various position counts and termination styles to accommodate diverse design constraints. The M50-4901345 specifically addresses needs for vertical, surface-mounted interfaces requiring robust mechanical retention and consistent electrical continuity in confined spaces.
