M50-4902245

Description：CONN HEADER SMD 44POS 1.27MM
Series：Archer M50
Mfr：Harwin Inc.
Package：Tube

SKU:a0aefe2a33c0 Category: Headers, Male Pins Brand: Harwin Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

M50-4902245 is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists Harwin Inc.. Its product description is CONN HEADER SMD 44POS 1.27MM. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for M50-4902245

Description：CONN HEADER SMD 44POS 1.27MM
Series：Archer M50
Mfr：Harwin Inc.
Package：Tube
Connector Type：Header
Contact Type：Male Pin
Pitch - Mating：0.050" (1.27mm)
Number of Positions：44
Number of Rows：2
Row Spacing - Mating：0.050" (1.27mm)
Number of Positions Loaded：All
Style：Board to Board
Shrouding：Shrouded - 4 Wall
Mounting Type：Surface Mount
Termination：Solder
Fastening Type：Push-Pull
Contact Length - Mating：-
Contact Length - Post：-
Overall Contact Length：-
Insulation Height：0.224" (5.69mm)
Contact Shape：Square
Contact Finish - Mating：Gold
Contact Finish Thickness - Mating：-
Contact Finish - Post：Gold
Contact Material：Copper Alloy
Insulation Material：Liquid Crystal Polymer (LCP)
Features：-
Operating Temperature：-40°C ~ 105°C
Ingress Protection：-
Material Flammability Rating：UL94 V-0
Insulation Color：Black
Current Rating (Amps)：1A per Contact
Voltage Rating：-

Headers, Male Pins datasheet and documents for M50-4902245

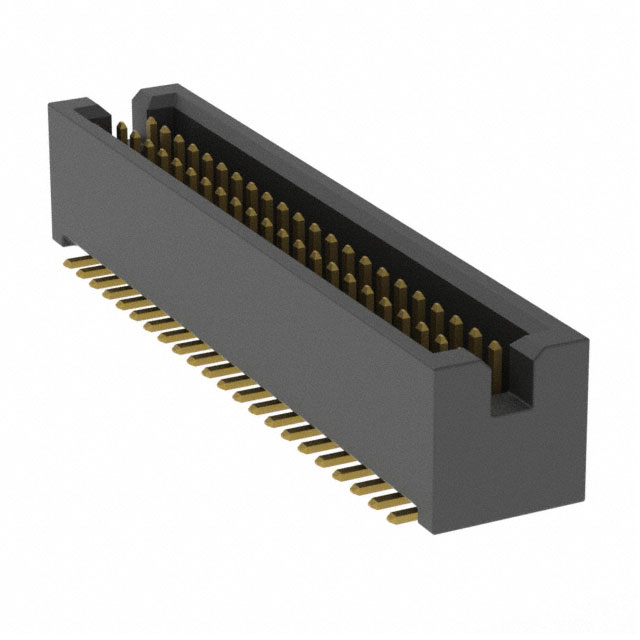

M50-4902245

Headers, Male Pins Overview

The Harwin M50-4902245 is a surface mount header connector from the ARCHER series, featuring a 1.27 mm pitch and 44 positions in a dual in-line configuration. It utilizes gold-plated copper alloy contacts housed in black liquid crystal polymer insulation. The component supports a current rating of 1 A and operates within a temperature range of -40°C to +105°C.

Headers, Male Pins Feature Summary

Push-pull fastening mechanism for secure mating
Shrouded design for pin protection
Gold-plated contacts for reliable conductivity

Headers, Male Pins Applications

Board-to-board interconnections
Wire-to-board connections
High-density electronic assemblies

Headers, Male Pins Procurement Notes

Verify the specific suffix against official Harwin documentation to confirm exact contact count and termination style. Ensure compatibility with mating sockets regarding shroud geometry and push-pull latch engagement. Confirm RoHS compliance status through the manufacturer's latest datasheet before integration.

Headers, Male Pins Selection Notes

Select this model for applications requiring high-density SMT headers with secure mechanical retention. The 1.27 mm pitch accommodates compact layouts while maintaining electrical isolation. Verify that the PCB footprint matches the specified dimensions for proper solder joint formation and alignment during assembly.

Headers, Male Pins Part Context

This component belongs to the Harwin ARCHER M50 series, designed for high-reliability interconnects. The series offers various configurations including shrouded and unshrouded options with different row counts. The M50-4902245 specifically addresses needs for robust surface-mount solutions in space-constrained environments.
