M50-4910745

Headers, Male Pins Overview

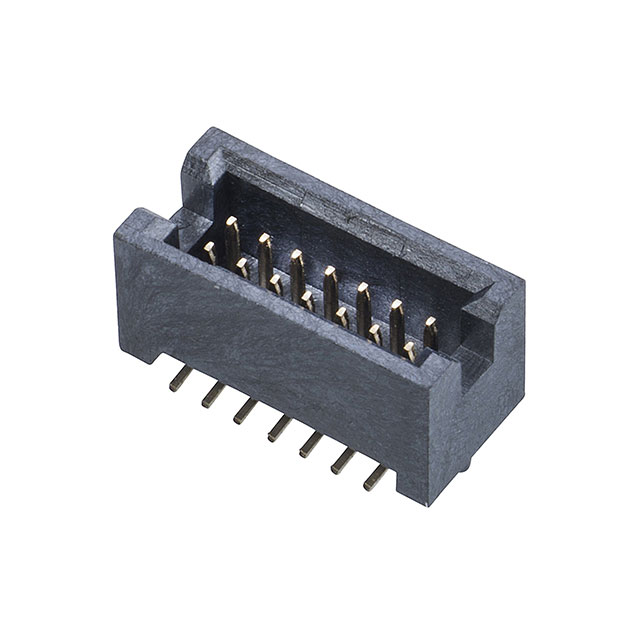

The Harwin M50-4910745 is a 14-position dual in-line (DIL) surface-mount header from the Archer M50 series. It features a 1.27 mm pitch and two rows of gold-plated phosphor bronze male pins housed in black liquid crystal polymer (LCP). The connector supports a current rating of 1 A and operates between -40°C and +105°C. Designed for board-to-board or wire-to-board applications, it includes mounting pegs for secure placement during assembly.

Headers, Male Pins Feature Summary

• Surface-mount architecture with integrated mounting pegs for precise PCB alignment
• Gold-plated phosphor bronze contacts ensuring reliable signal transmission
• High-temperature resistant LCP housing rated UL 94 V-0

Headers, Male Pins Applications

• Board-to-board interconnections
• Wire-to-board connections
• General electronic circuit assemblies

Headers, Male Pins Procurement Notes

Verify the specific suffix against official datasheets to confirm pin count and shrouding details. Ensure compatibility with mating sockets within the same 1.27 mm pitch family. Confirm RoHS compliance status through manufacturer documentation before integration into regulated products.

Headers, Male Pins Selection Notes

Select this component for high-density SMT designs requiring robust mechanical stability via mounting pegs. The 1.27 mm pitch suits compact layouts, while the 1 A rating fits low-power signal applications. Verify thermal limits against operational environments.

Headers, Male Pins Part Context

Part of the Archer M50 series offering various mating heights and configurations. This specific model provides a DIL header configuration suitable for standard vertical mounting on printed circuit boards.

Headers, Male Pins Replacement Considerations

Compatible mates include other M50 series sockets with matching 1.27 mm pitch and 14-position DIL layout. Verify housing dimensions and contact plating specifications for interchangeability.
