M5010012F

$159.52

Description：MODULE POWER 100A 600V SCR CC
Series：M50

SKU:9bc6c1a2af0c Category: SCRs - Modules Brand: Sensata-Crydom

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

M5010012F is listed in the SCRs - Modules range at ChipApex. The manufacturer field lists Sensata-Crydom. Its product description is MODULE POWER 100A 600V SCR CC. Review the specifications below when checking this part for your BOM.

SCRs - Modules specifications for M5010012F

Description：MODULE POWER 100A 600V SCR CC
Series：M50
Mfr：Sensata-Crydom
Package：Bulk
Structure：Bridge, Single Phase - SCRs/Diodes (Layout 1)
Number of SCRs, Diodes：2 SCRs, 2 Diodes
Voltage - Off State：600 V
Current - On State (It (AV)) (Max)：-
Current - On State (It (RMS)) (Max)：-
Current - Non Rep. Surge 50, 60Hz (Itsm)：1500A @ 60Hz
Operating Temperature：-40°C ~ 125°C (TJ)
Mounting Type：Chassis Mount
Package / Case：Module
Voltage - Gate Trigger (Vgt) (Max)：3 V
Current - Gate Trigger (Igt) (Max)：150 mA
Current - Hold (Ih) (Max)：-
Grade：-
Qualification：-

SCRs - Modules datasheet and documents for M5010012F

M5010012F

SCRs - Modules Overview

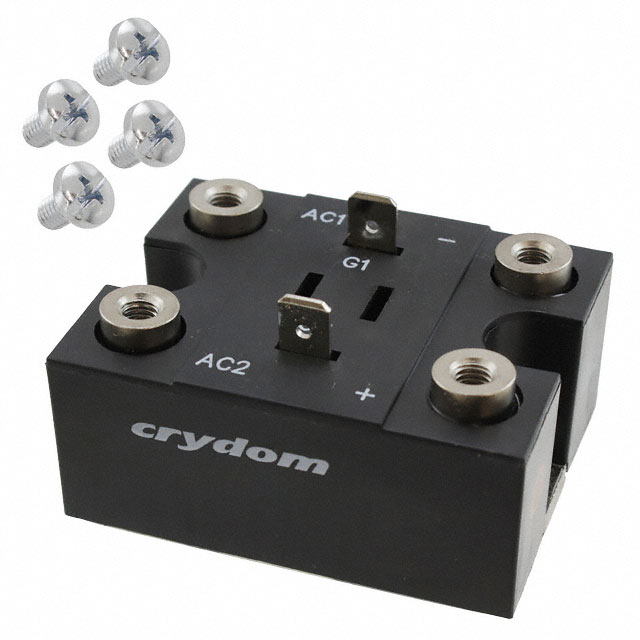

The M5010012F is a single-phase SCR/diode module from the M50 series, manufactured by Sensata-Crydom. It features a standard configuration with two SCRs and two diodes in a bridge layout. The device supports an average forward current of 100 A and a repetitive peak off-state voltage of 600 V. It utilizes silicon technology and operates within a junction temperature range of -40°C to +125°C. The unit weighs approximately 208.7 g and employs screw mount installation.

SCRs - Modules Feature Summary

Integrates two SCRs and two diodes in a single-phase bridge configuration for robust power switching.
Utilizes silicon technology designed for high-current industrial applications.
Features a rugged module package suitable for base mounting via screws.

SCRs - Modules Applications

Industrial motor control systems
AC power regulation circuits
Solid-state power switching

SCRs - Modules Procurement Notes

Verify the specific suffix against official datasheets to confirm electrical ratings and pinout compatibility. Confirm RoHS compliance status and REACH SVHC declarations prior to integration. Ensure thermal management solutions align with the specified junction temperature limits and mounting requirements.

SCRs - Modules Selection Notes

Select this component for applications requiring a combined SCR and diode topology in a compact form factor. Evaluate the 600 V rating against system voltage peaks. Consider the 100 A continuous current capability relative to load demands and ambient operating temperatures.

SCRs - Modules Part Context

This part belongs to the M50 series of discrete semiconductor modules. The series offers various configurations including pure diode bridges and SCR-only arrangements. The M5010012F specifically addresses needs for mixed rectification and phase control within a standardized mechanical footprint.

SCRs - Modules Replacement Considerations

Cross-reference with M5010012V for potential functional equivalents within the same product line. Verify mechanical dimensions and terminal layouts before substitution.
