M52-040000P0545

Headers, Male Pins Overview

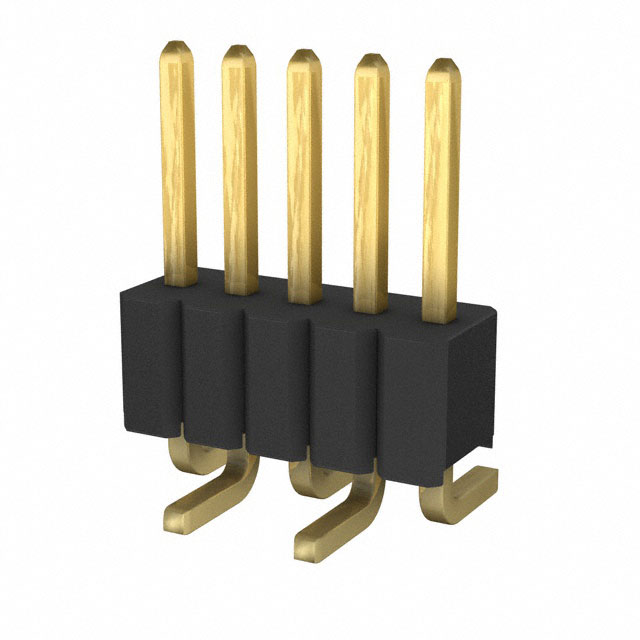

The Harwin M52-040000P0545 is a single-row, vertical surface-mount pin header from the Archer M52 series. It features a 1.27 mm pitch and five contacts with gold-plated brass terminals. Designed for board-to-board connections, it utilizes a nylon housing and solder tail termination. The component supports a mating height of 4 mm and operates within a temperature range of -40°C to 105°C.

Headers, Male Pins Feature Summary

• Vertical surface-mount design for compact electronic assemblies
• Gold-plated brass contacts ensure reliable signal transmission
• Single-row configuration facilitates dense circuit board layouts

Headers, Male Pins Applications

• Board-to-board interconnections in compact electronics
• Surface-mount assembly for high-density circuit boards
• Signal routing in consumer and industrial devices

Headers, Male Pins Procurement Notes

Verify the specific contact count and tail length against official datasheets before ordering. Confirm surface-mount compatibility and orientation requirements for the target PCB layout. Ensure material specifications meet environmental standards for the intended operating conditions.

Headers, Male Pins Selection Notes

Choose this component for applications requiring low-profile vertical headers with precise 1.27 mm spacing. Consider the 4 mm mating height constraint when designing stack-ups. Evaluate thermal performance limits relative to the operational environment.

Headers, Male Pins Part Context

This part belongs to the Harwin Archer M52 series, which provides robust surface-mount solutions. The series emphasizes reliability and compactness for modern electronics. The M52-040000P0545 specifically addresses needs for small-footprint, multi-pin vertical connections.

Headers, Male Pins Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Verify mechanical fit and electrical characteristics if considering alternative suppliers.
