M52-040023V0345

Headers, Male Pins Overview

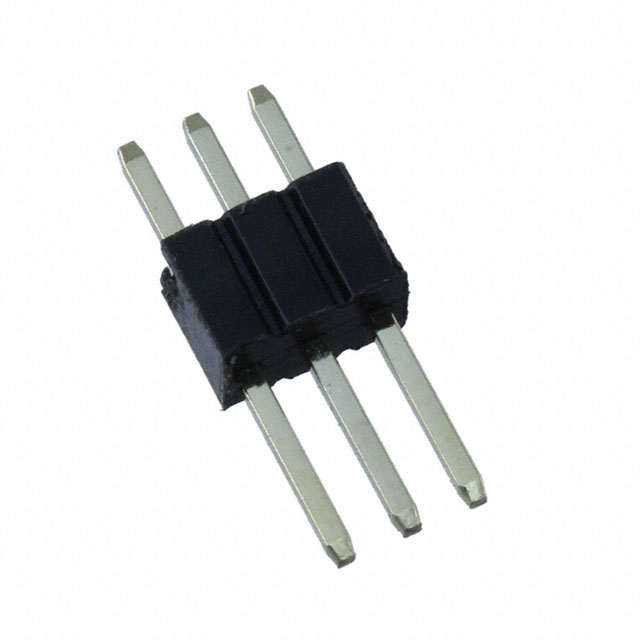

The Harwin M52-040023V0345 is a single-row pin header from the ARCHER series, designed for board-to-board connections. It features a 1.27 mm pitch with 3 positions and vertical straight mounting via through-hole solder tails. The contacts are gold-plated brass pins rated for 1 A current and 500 V voltage. Operating within a temperature range of -40°C to +105°C, it utilizes black nylon insulation.

Headers, Male Pins Feature Summary

• Vertical single-row configuration for compact board-to-board integration
• Gold-plated brass contacts ensure reliable signal transmission
• Through-hole solder tail design facilitates secure PCB attachment

Headers, Male Pins Applications

• Board-to-board interconnects in electronic assemblies
• Signal routing in industrial control systems
• Connection interfaces in consumer electronics devices

Headers, Male Pins Procurement Notes

Verify the specific part number M52-040023V0345 against official Harwin documentation to confirm the 3-position count and 1.27 mm pitch specifications. Ensure compatibility with mating connectors within the ARCHER series. Check RoHS compliance status directly from the manufacturer datasheet before procurement.

Headers, Male Pins Selection Notes

Select this component when a low-profile, single-row header with a 1.27 mm pitch is required for vertical mounting. The gold plating offers corrosion resistance suitable for general electronic applications. Consider the 1 A current rating and thermal limits when designing circuits requiring stable performance across varying temperatures.

Headers, Male Pins Part Context

This connector belongs to the Harwin ARCHER M52 series, which provides high-density interconnect solutions. The series is characterized by its slim profile and robust construction, making it suitable for space-constrained designs. The M52 variant specifically addresses needs for reliable vertical connections in modern electronic hardware.

Headers, Male Pins Replacement Considerations

Compatible substitutes include other Harwin ARCHER series headers with identical 1.27 mm pitch and single-row configuration. Verify that alternative parts match the 3-position count, vertical orientation, and through-hole termination style to ensure mechanical and electrical interchangeability.
