M55-6001642R

Headers, Receptacles, Female Sockets Overview

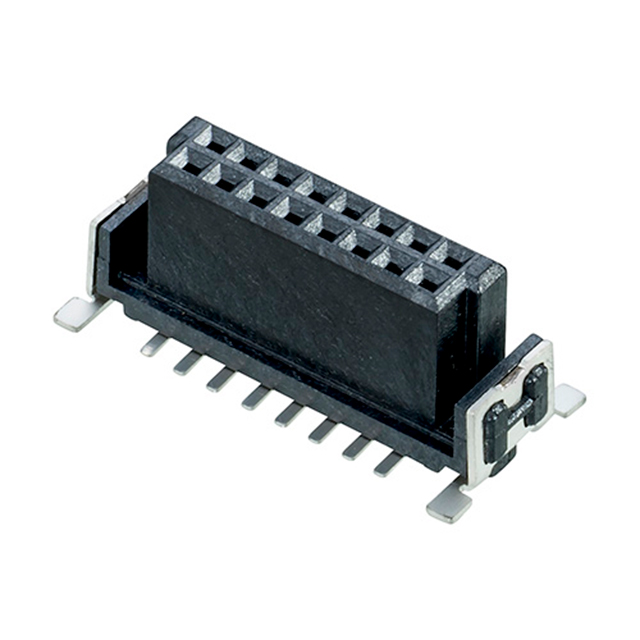

The M55-6001642R is a vertical board-to-board connector from the Harwin Archer Kontrol series. It features a 1.27 mm pitch and 16 positions arranged in two rows. The component utilizes surface mount technology with solder termination. Contact materials are phosphor bronze with gold plating, housed in liquid crystal polymer (LCP). Rated current is 1.2 A at 100 VAC. Operating temperature ranges from -55°C to +125°C. Insulation resistance is 10 GOhms. Stack height is 6.25 mm. Flammability rating is UL94 V-0.

Headers, Receptacles, Female Sockets Feature Summary

• Archer Kontrol design ensures robust mechanical retention and precise alignment for high-density applications.
• Vertical SMT configuration facilitates compact board stacking with minimal profile footprint.
• Gold-plated phosphor bronze contacts provide reliable signal transmission and corrosion resistance.

Headers, Receptacles, Female Sockets Applications

• High-density electronic assemblies requiring vertical interconnection
• Industrial control modules with space constraints
• Automotive electronics utilizing board-to-board interfaces

Headers, Receptacles, Female Sockets Procurement Notes

Verify that the specific part number matches the required 16-position vertical female configuration. Confirm surface mount compatibility with your assembly process. Ensure LCP insulation material meets thermal requirements. Check for RoHS compliance documentation if mandated by project specifications. Validate stack height tolerance against mechanical enclosure limits.

Headers, Receptacles, Female Sockets Selection Notes

Select this component when a 1.27 mm pitch vertical interface is necessary. Suitable for applications needing 16 connections in a dual-row format. Ideal for designs prioritizing low profile and secure mating. Consider phosphor bronze contact material for durability. Verify operating temperature range suitability for the intended environment.

Headers, Receptacles, Female Sockets Part Context

This connector belongs to the Harwin M55 series, specifically the Archer Kontrol line. These connectors are engineered for demanding environments requiring high reliability. The series offers various pin counts and configurations. The M55-6001642R represents a standard vertical female variant within this robust product family.

Headers, Receptacles, Female Sockets Replacement Considerations

No public confirmed substitute part numbers are available in the provided data. Consult Harwin engineering for direct equivalents or cross-references if this specific model is unavailable.
