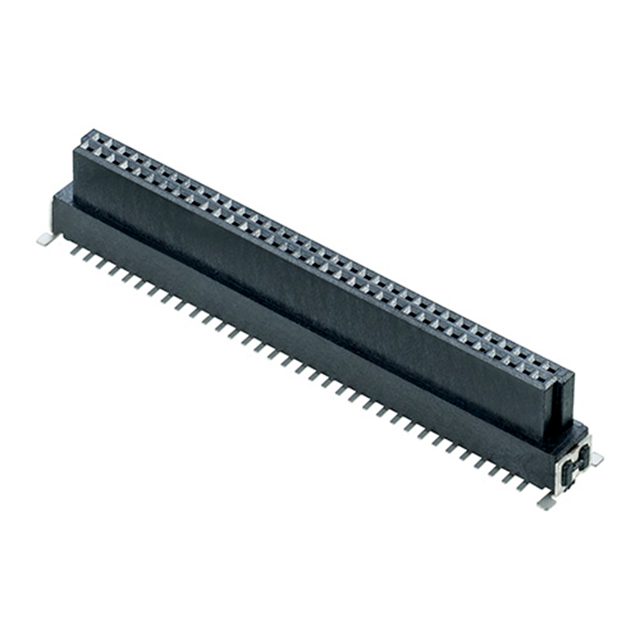

M55-6016842R

$4.59

Description：CONN RCPT 68POS 0.05 GOLD SMD
Series：Kontrol
Mfr：Harwin Inc.
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:4549a08722ec Category: Headers, Receptacles, Female Sockets Brand: Harwin Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

M55-6016842R is listed in the Headers, Receptacles, Female Sockets range at ChipApex. The manufacturer field lists Harwin Inc.. Its product description is CONN RCPT 68POS 0.05 GOLD SMD. Review the specifications below when checking this part for your BOM.

Headers, Receptacles, Female Sockets specifications for M55-6016842R

Description：CONN RCPT 68POS 0.05 GOLD SMD
Series：Kontrol
Mfr：Harwin Inc.
Package：Tape & Reel (TR),Cut Tape (CT)
Connector Type：Receptacle
Contact Type：Female Socket
Style：Board to Board
Number of Positions：68
Number of Positions Loaded：All
Pitch - Mating：0.050" (1.27mm)
Number of Rows：2
Row Spacing - Mating：0.050" (1.27mm)
Mounting Type：Surface Mount
Termination：Solder
Fastening Type：Latch Holder
Contact Finish - Mating：Gold
Contact Finish Thickness - Mating：1.00µin (0.025µm)
Insulation Color：Black
Insulation Height：0.356" (9.05mm)
Contact Length - Post：-
Operating Temperature：-55°C ~ 125°C
Material Flammability Rating：UL94 V-0
Contact Finish - Post：Tin
Mated Stacking Heights：10.8mm, 12.3mm, 13.9mm
Ingress Protection：-
Features：Board Guide, Pick and Place, Solder Retention
Current Rating (Amps)：1.2A
Voltage Rating：100VAC

Headers, Receptacles, Female Sockets datasheet and documents for M55-6016842R

M55-6016842R

Headers, Receptacles, Female Sockets Overview

The Harwin M55-6016842R is a 68-position vertical surface-mount board-to-board connector from the Archer Kontrol series. It features a 1.27 mm pitch and utilizes gold-plated phosphor bronze contacts within an LCP housing rated UL 94 V-0. The component supports a current rating of 1.2 A and a voltage rating of 100 VAC, operating between -55°C and +125°C. With a stack height of 6.25 mm and 10 GOhms insulation resistance, it ensures reliable interconnection in compact electronic assemblies.

Headers, Receptacles, Female Sockets Feature Summary

Vertical SMT design for space-efficient board stacking
Gold-plated phosphor bronze contacts for corrosion resistance
UL 94 V-0 rated Liquid Crystal Polymer (LCP) housing

Headers, Receptacles, Female Sockets Applications

Automotive electronics systems
Industrial control modules
General purpose electronic interconnects

Headers, Receptacles, Female Sockets Procurement Notes

Verify the specific suffix 'R' indicates reel packaging configuration as documented by the manufacturer. Confirm RoHS compliance status through official datasheets prior to integration. Ensure mating components match the 1.27 mm pitch and vertical orientation specifications to maintain mechanical integrity and electrical performance standards.

Headers, Receptacles, Female Sockets Selection Notes

Select this connector for applications requiring high-density vertical interconnects with robust thermal stability. The 6.25 mm stack height accommodates specific layer spacing requirements. Verify that the 1.2 A current rating meets circuit demands and that the LCP material compatibility aligns with assembly processes.

Headers, Receptacles, Female Sockets Part Context

This component belongs to the Harwin Archer Kontrol M55 series, designed for high-reliability board-to-board connections. The series emphasizes precise alignment and durable contact performance in demanding environments, supporting various position counts within a standardized 1.27 mm pitch framework.
