M80-4000000F2-04-PF1-00-000

Headers, Receptacles, Female Sockets Overview

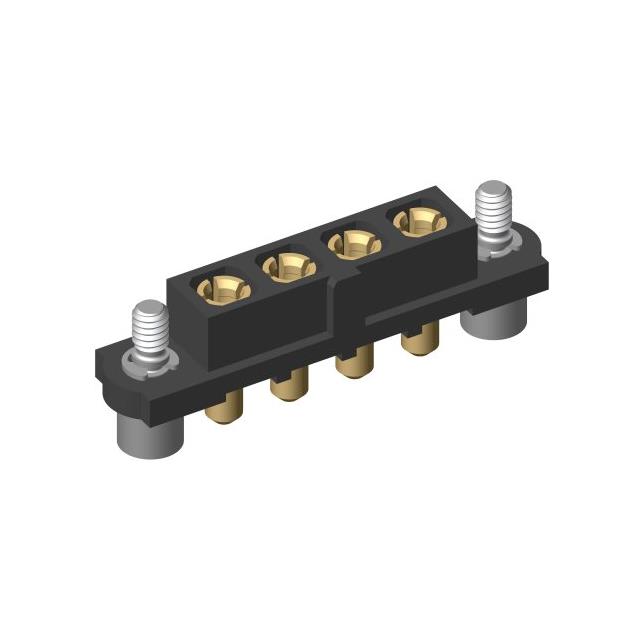

The M80-4000000F2-04-PF1-00-000 is a Datamate Mix-Tek female cable connector manufactured by Harwin. It features an extended guide pin and includes four +2mm crimp coax contacts designed for power transmission. The unit utilizes a 90-degree orientation and incorporates jackscrews for secure front panel mounting, providing a robust interface solution for high-density power applications.

Headers, Receptacles, Female Sockets Feature Summary

• Integrates four +2mm crimp coax contacts specifically engineered for reliable power transmission within the Datamate Mix-Tek system.
• Equipped with an extended guide pin to ensure precise alignment during mating cycles in demanding environments.
• Features 90-degree cable termination geometry combined with jackscrews for secure front panel mounting.

Headers, Receptacles, Female Sockets Applications

• High-density power distribution in industrial control systems
• Front panel mounting interfaces for electronic enclosures
• Power supply connections in telecommunications infrastructure

Headers, Receptacles, Female Sockets Procurement Notes

Verify the specific ordering suffix PF1 against the official Harwin datasheet to confirm the exact contact configuration and housing material. Ensure compatibility with mating male connectors from the same Datamate Mix-Tek series. Cross-reference the extended guide pin specification with mechanical clearance requirements in the target assembly design.

Headers, Receptacles, Female Sockets Selection Notes

Select this component when a female cable connector with dedicated power-only contacts is required. The 90-degree form factor suits space-constrained layouts where cable exit direction is critical. The inclusion of jackscrews makes it suitable for applications requiring vibration resistance and secure panel attachment without additional fasteners.

Headers, Receptacles, Female Sockets Part Context

This part belongs to the Datamate Mix-Tek family, which combines signal and power capabilities in a compact footprint. The M80 series designation indicates a standard housing size within Harwin's modular connector portfolio, designed for mixed-signal applications requiring robust mechanical retention and reliable electrical performance.

Headers, Receptacles, Female Sockets Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Direct replacement requires identical mating interface specifications and contact arrangement.
