M80-4001042

Headers, Receptacles, Female Sockets Overview

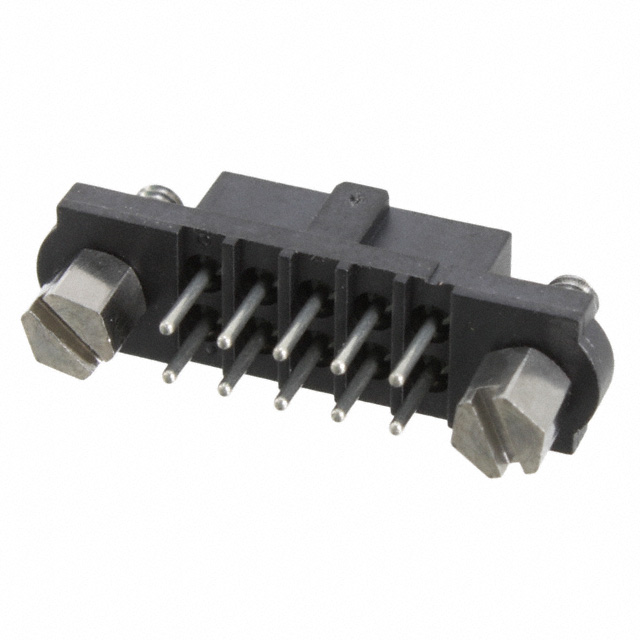

The Harwin M80-4001042 is a 10-position, double-row board-to-board female header from the Datamate J-Tek series. It features a 2 mm pitch and is designed for vertical through-hole mounting. The connector supports a rated voltage of 120 V and a current capacity of 12 A. Contacts are manufactured from beryllium copper with gold plating to ensure reliable signal transmission. The housing is constructed from black PPS material, providing durability within an operating temperature range of -55°C to +125°C.

Headers, Receptacles, Female Sockets Feature Summary

• Datamate J-Tek high-reliability interconnect system
• Gold-plated beryllium copper contacts for conductivity
• Vertical through-hole solder termination
• PPS insulator for thermal stability

Headers, Receptacles, Female Sockets Applications

• Industrial control systems
• Medical equipment
• Metering and measurement devices
• Aviation and defense electronics

Headers, Receptacles, Female Sockets Procurement Notes

Verify the specific part number against official Harwin documentation to confirm pin count and row configuration. Ensure compatibility with mating male headers in the same series. Check for RoHS compliance status on the manufacturer datasheet before integration into regulated assemblies.

Headers, Receptacles, Female Sockets Selection Notes

Select this component when a compact, high-density connection is required between two PCBs. The 2 mm pitch allows for significant I/O density in limited space. Verify that the application environment stays within the specified temperature limits and that the 12 A current rating meets the circuit requirements.

Headers, Receptacles, Female Sockets Part Context

This connector belongs to the Datamate M80 series, known for rugged performance in harsh environments. It is part of the J-Tek line, which offers various contact options and housing styles. The series is widely used in sectors demanding high reliability and secure connections under vibration or shock conditions.

Headers, Receptacles, Female Sockets Replacement Considerations

Direct substitutes must match the 10-pin, double-row, 2 mm pitch specification. Verify that any alternative maintains the same vertical orientation and through-hole termination style to ensure mechanical fit.
