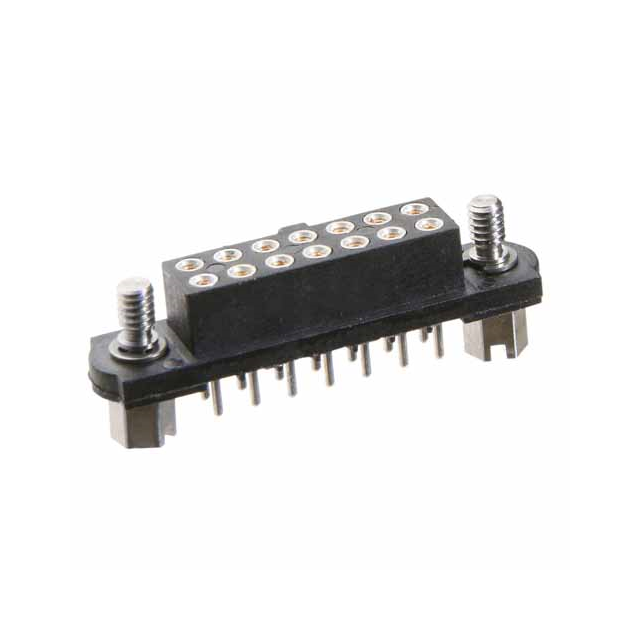

M80-4001401

$11.62

Description：CONN RCPT 14POS 0.079 GOLD PCB
Series：Datamate J-Tek
Mfr：Harwin Inc.
Package：Tube

SKU:fdf58bc80670 Category: Headers, Receptacles, Female Sockets Brand: Harwin Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

M80-4001401 is listed in the Headers, Receptacles, Female Sockets range at ChipApex. The manufacturer field lists Harwin Inc.. Its product description is CONN RCPT 14POS 0.079 GOLD PCB. Review the specifications below when checking this part for your BOM.

Headers, Receptacles, Female Sockets specifications for M80-4001401

Description：CONN RCPT 14POS 0.079 GOLD PCB
Series：Datamate J-Tek
Mfr：Harwin Inc.
Package：Tube
Connector Type：Receptacle
Contact Type：Female Socket
Style：Board to Board or Cable
Number of Positions：14
Number of Positions Loaded：All
Pitch - Mating：0.079" (2.00mm)
Number of Rows：2
Row Spacing - Mating：0.079" (2.00mm)
Mounting Type：Through Hole
Termination：Solder
Fastening Type：Screw Lock
Contact Finish - Mating：Gold
Contact Finish Thickness - Mating：12.0µin (0.30µm)
Insulation Color：Black
Insulation Height：0.205" (5.20mm)
Contact Length - Post：0.118" (3.00mm)
Operating Temperature：-55°C ~ 125°C
Material Flammability Rating：UL94 V-0
Contact Finish - Post：Tin-Lead
Mated Stacking Heights：7.3mm, 7.55mm
Ingress Protection：-
Features：Jackscrews, Mating Flange, Mounting Flange, Polarizing Key
Current Rating (Amps)：-
Voltage Rating：120V

Headers, Receptacles, Female Sockets datasheet and documents for M80-4001401

M80-4001401

Headers, Receptacles, Female Sockets Overview

The M80-4001401 is a Datamate J-Tek series power connector manufactured by Harwin Inc. It features a 14-position (7+7) female socket configuration with a 2 mm pitch. The component utilizes tin-plated contacts and is designed for crimp termination. It supports cable mounting with a 3 mm tail length and includes jackscrew locking, mating flange, and polarizing key features.

Headers, Receptacles, Female Sockets Feature Summary

Incorporates jackscrew locking mechanism for secure connection retention
Features polarizing keys to ensure correct alignment during mating
Designed with integrated mounting flanges for stable PCB attachment

Headers, Receptacles, Female Sockets Applications

Power distribution in industrial control systems
Signal interconnection in automotive electronics
General purpose board-to-cable connections

Headers, Receptacles, Female Sockets Procurement Notes

Verify the specific contact plating specification against official datasheets, as conflicting data exists between tin and gold options for this part number. Confirm the exact tail length requirement matches the design intent. Ensure the selected variant aligns with the required RoHS compliance status before finalizing procurement orders.

Headers, Receptacles, Female Sockets Selection Notes

Select this component when a robust, locked power connector is required for high-vibration environments. The jackscrew feature provides superior mechanical security compared to friction-fit alternatives. Verify that the 2 mm pitch and 14-position layout fit the available board space and routing requirements.

Headers, Receptacles, Female Sockets Part Context

This part belongs to the Datamate J-Tek family, known for its modular design and high reliability. The M80-400 series typically denotes through-hole or cable-mount receptacles within the broader connector ecosystem. It complements matching pin headers and housing components from the same manufacturer.
