M80-4001442

$13.70

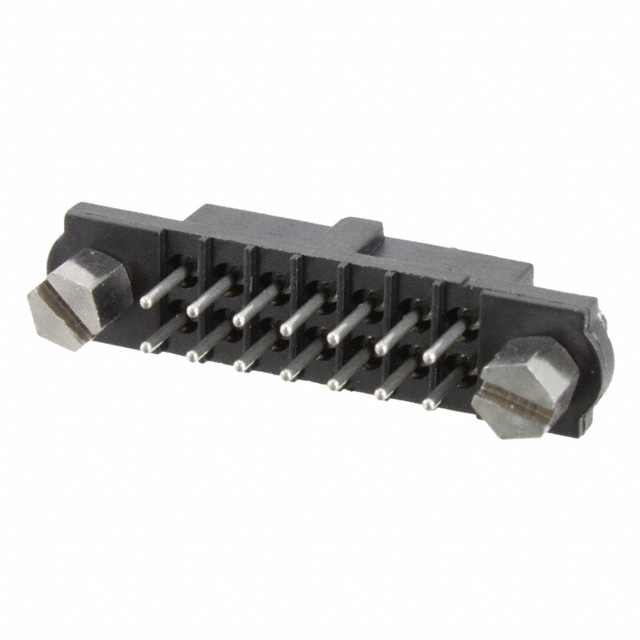

Description：CONN RCPT 14POS 0.079 GOLD PCB
Series：Datamate J-Tek
Mfr：Harwin Inc.
Package：Tube

SKU:7e66cb411972 Category: Headers, Receptacles, Female Sockets Brand: Harwin Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

M80-4001442 is listed in the Headers, Receptacles, Female Sockets range at ChipApex. The manufacturer field lists Harwin Inc.. Its product description is CONN RCPT 14POS 0.079 GOLD PCB. Review the specifications below when checking this part for your BOM.

Headers, Receptacles, Female Sockets specifications for M80-4001442

Description：CONN RCPT 14POS 0.079 GOLD PCB
Series：Datamate J-Tek
Mfr：Harwin Inc.
Package：Tube
Connector Type：Receptacle
Contact Type：Female Socket
Style：Board to Board or Cable
Number of Positions：14
Number of Positions Loaded：All
Pitch - Mating：0.079" (2.00mm)
Number of Rows：2
Row Spacing - Mating：0.079" (2.00mm)
Mounting Type：Through Hole
Termination：Solder
Fastening Type：Screw Lock
Contact Finish - Mating：Gold
Contact Finish Thickness - Mating：12.0µin (0.30µm)
Insulation Color：Black
Insulation Height：0.205" (5.20mm)
Contact Length - Post：0.118" (3.00mm)
Operating Temperature：-55°C ~ 125°C
Material Flammability Rating：UL94 V-0
Contact Finish - Post：Tin
Mated Stacking Heights：7.3mm, 7.55mm
Ingress Protection：-
Features：Jackscrews, Mating Flange, Mounting Flange, Polarizing Key
Current Rating (Amps)：-
Voltage Rating：120V

Headers, Receptacles, Female Sockets datasheet and documents for M80-4001442

M80-4001442

Headers, Receptacles, Female Sockets Overview

The Harwin M80-4001442 is a Datamate J-Tek power-to-the-board connector socket. It features a 14-position, dual-row configuration with a 2 mm pitch. Designed for vertical through-hole mounting, it utilizes solder pin termination. The contacts are made of beryllium copper with gold plating. Rated for 12 A current and 120 V voltage, the housing is constructed from black polyphenylene sulfide (PPS).

Headers, Receptacles, Female Sockets Feature Summary

High-reliability design suitable for demanding industrial environments.
Secure mechanical locking via integrated latching mechanisms.
Robust construction using PPS insulation material.

Headers, Receptacles, Female Sockets Applications

Industrial control systems
Power distribution units
Automotive electronics

Headers, Receptacles, Female Sockets Procurement Notes

Verify the specific suffix codes against the official Harwin datasheet to ensure correct contact plating and housing color options. Confirm that the selected variant matches the required current rating and environmental specifications for the target application before finalizing procurement orders.

Headers, Receptacles, Female Sockets Selection Notes

Select this component when a high-current, vertically mounted board-to-board connection is required. Ensure the mating header part number corresponds to the 14-pin, dual-row format. Verify that the PCB layout accommodates the specified 2 mm pitch and through-hole soldering requirements.

Headers, Receptacles, Female Sockets Part Context

This connector belongs to the Datamate J-Tek series by Harwin, known for high-reliability interconnect solutions. The M80 series provides robust performance in harsh conditions, utilizing secure locking mechanisms and durable materials for consistent electrical connectivity in critical applications.

Headers, Receptacles, Female Sockets Replacement Considerations

M80-4001442 is marked as obsolete. Check for direct substitutes within the M80 series or consult Harwin for recommended replacement components that match the 14-pin, 2mm pitch specification.
