M80-4032042

Headers, Receptacles, Female Sockets Overview

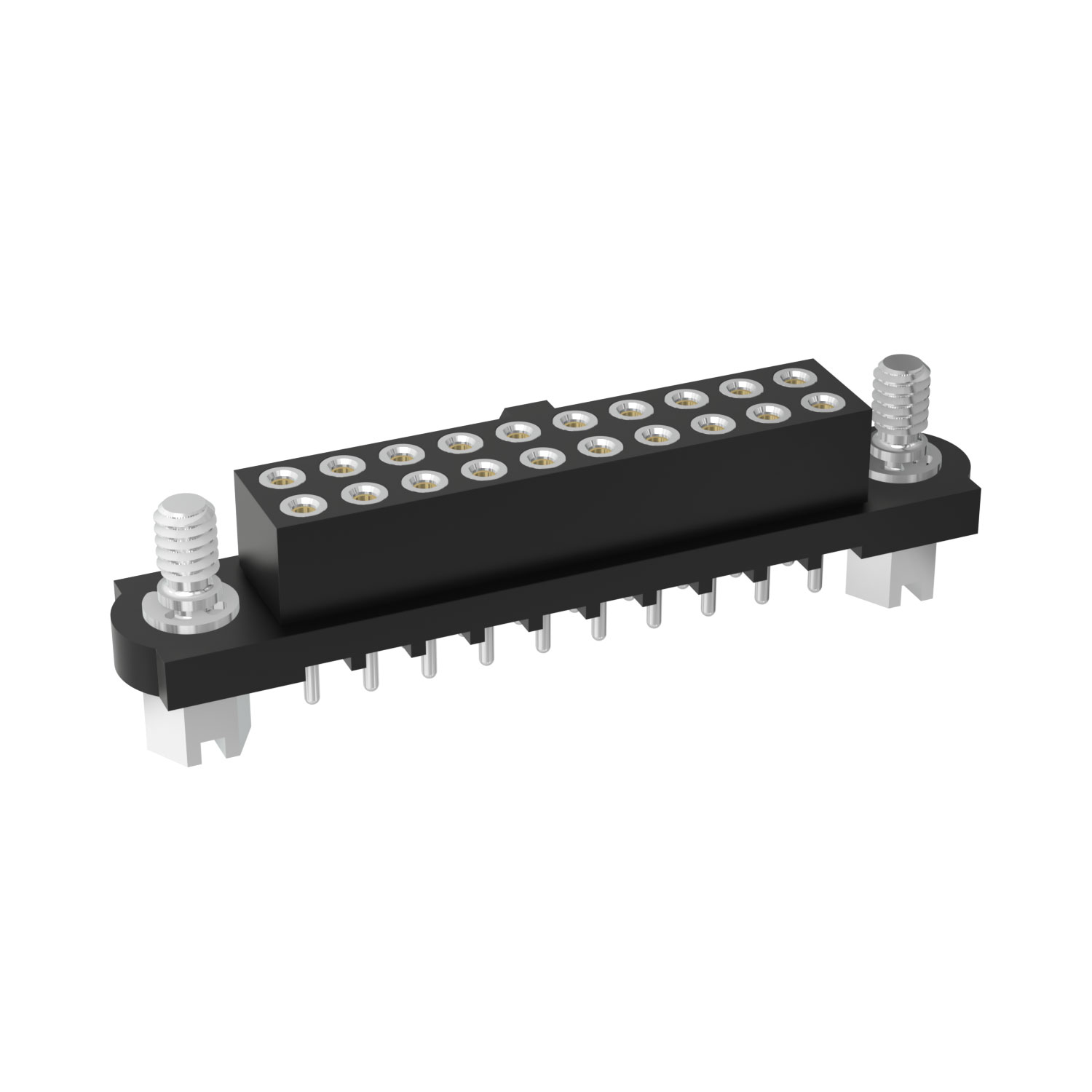

The M80-4032042 is a Datamate J-Tek header manufactured by Harwin Inc. It features 20 positions arranged in two rows with a 2 mm pitch. The connector utilizes male pin contacts made of phosphor bronze, gold-plated for reliable signal transmission. Designed for vertical through-hole mounting, it employs solder termination. The housing is constructed from black polyphenylene sulfide (PPS) reinforced with glass fiber, ensuring UL94 V-0 flammability rating. It operates within a temperature range of -55°C to +125°C and supports a current rating of 3.3 A per contact.

Headers, Receptacles, Female Sockets Feature Summary

• Integrates keying slots, mating flanges, and mounting flanges for secure alignment and mechanical stability.
• Utilizes gold-plated phosphor bronze contacts to ensure low resistance and corrosion resistance.
• Features a high-temperature resistant PPS insulator with glass fiber reinforcement for structural integrity.

Headers, Receptacles, Female Sockets Applications

• Industrial control systems requiring robust board-to-board interconnects
• Automotive electronics demanding high thermal stability
• General-purpose electronic equipment needing reliable signal transmission

Headers, Receptacles, Female Sockets Procurement Notes

Verify the specific ordering suffix to confirm the inclusion of mounting hardware, as indicated in product descriptions. Ensure compatibility with mating female sockets regarding stacking height requirements. Confirm RoHS compliance status through official datasheets before finalizing procurement specifications.

Headers, Receptacles, Female Sockets Selection Notes

Select this component when vertical through-hole mounting is required for high-density applications. The 2 mm pitch allows for compact circuit board layouts. Consider the 3.3 A current rating for power distribution needs. Verify that the mating interface matches the Datamate J-Tek female socket series for proper engagement.

Headers, Receptacles, Female Sockets Part Context

This part belongs to the Datamate J-Tek series, known for its modular design and high reliability. It serves as a male header counterpart to female sockets within the same ecosystem. The series is widely used in harsh environments due to its locking mechanism and durable materials, providing stable connections for critical data and power lines.

Headers, Receptacles, Female Sockets Replacement Considerations

Direct substitutes include other Harwin Datamate J-Tek headers with identical 20-position, 2-row, 2 mm pitch configurations. Ensure replacement parts maintain the same male contact type and through-hole mounting style. Verify that alternative suppliers offer equivalent gold plating thickness and PPS material properties.
