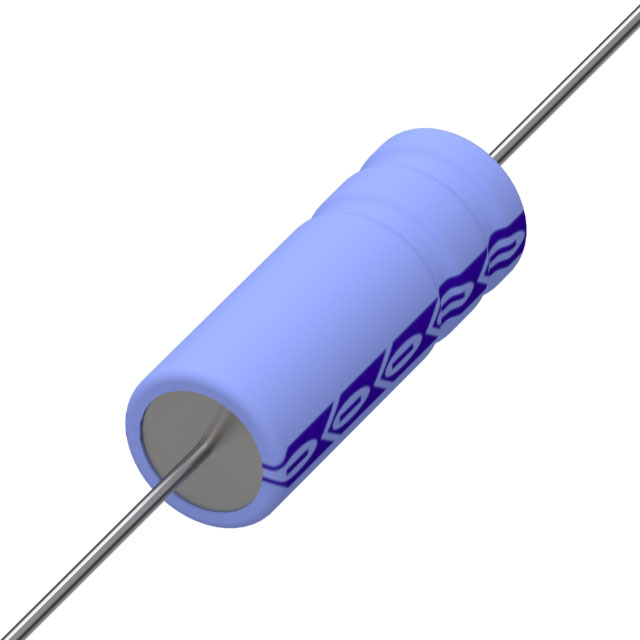

MAL203134221E3

MAL203134221E3 is listed in the Aluminum Electrolytic Capacitors range at ChipApex. The manufacturer field lists Vishay Beyschlag/Draloric/BC Components. Its product description is CAP ALUM 220UF 10V AXIAL TH. Review the specifications below when checking this part for your BOM.

Aluminum Electrolytic Capacitors specifications for MAL203134221E3

• Description：CAP ALUM 220UF 10V AXIAL TH
• Series：031 AS
• Mfr：Vishay Beyschlag/Draloric/BC Components
• Package：Tape & Box (TB)
• Capacitance：220 µF
• Tolerance：-10%, +50%
• Voltage - Rated：10 V
• ESR (Equivalent Series Resistance)：1.45Ohm @ 100Hz
• Lifetime @ Temp.：3000 Hrs @ 85°C
• Operating Temperature：-40°C ~ 85°C
• Polarization：Polar
• Ratings：-
• Applications：General Purpose
• Ripple Current @ Low Frequency：210 mA @ 100 Hz
• Ripple Current @ High Frequency：-
• Lead Spacing：-
• Size / Dimension：0.256" Dia x 0.709" L (6.50mm x 18.00mm)
• Height - Seated (Max)：-
• Surface Mount Land Size：-
• Mounting Type：Through Hole
• Package / Case：Axial, Can
• Impedance：730 mOhms

Aluminum Electrolytic Capacitors datasheet and documents for MAL203134221E3
