MC56F8335MFGE

Microcontrollers Overview

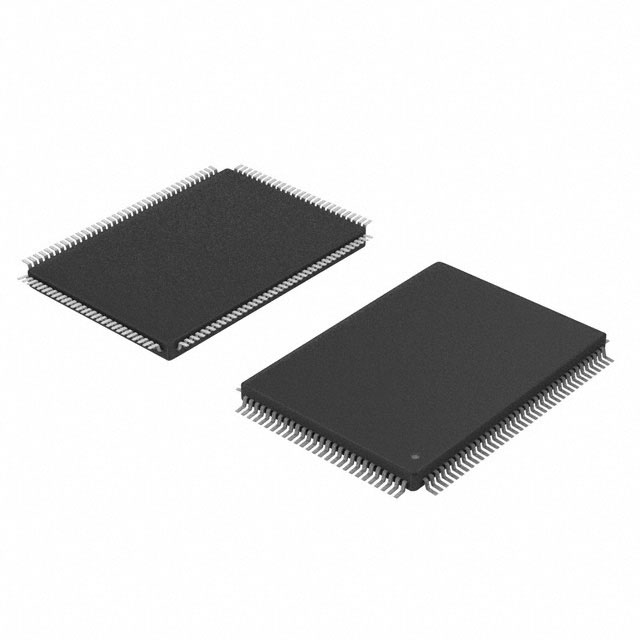

The MC56F8335MFGE is a digital signal controller based on the 56800E core, operating at up to 60 MHz with 60 MIPS performance. It features an LQFP-128 package and operates within a temperature range of -40°C to +125°C. Memory includes 64 KB Program Flash, 8 KB Data Flash, 8 KB Boot Flash, 4 KB Program RAM, and 8 KB Data RAM. Peripherals comprise four 12-bit ADCs, two PWM modules, FlexCAN, two SCIs, two SPIs, sixteen 16-bit timers, and quadrature decoders.

Microcontrollers Feature Summary

• Hybrid architecture combining microcontroller ease-of-programming with digital signal processing efficiency using the 56800E core.
• Integrated safety functions including temperature monitoring, fault conditions, write protection registers, and on-chip clock synthesis for graceful shutdown.
• High-performance pulse-width modulation with programmable fault capability and tight coupling between PWM and analog-to-digital converter modules.
• FlexCAN module providing full Controller Area Network capability for reliable networking communication.

Microcontrollers Applications

• Automotive control systems
• Industrial control and connectivity
• Advanced motion control
• Home appliances
• General-purpose inverters

Microcontrollers Procurement Notes

Verify the specific order number against the required temperature range. The MC56F8335MFG60 corresponds to the -40°C to +125°C range, while MC56F8335VFG60 covers -40°C to +105°C. Confirm package type is Low-Profile Quad Flat Pack (LQFP) with 128 pins. Ensure compatibility with CodeWarrior IDE and Processor Expert tools for development.

Microcontrollers Selection Notes

Select this component for applications requiring high-speed signal processing alongside robust control capabilities in harsh environments. The device supports C-efficient programming and offers extensive peripheral integration to reduce system component count. Consider the memory configuration and peripheral set relative to application complexity. Verify that the 60 MHz execution frequency meets real-time processing requirements.

Microcontrollers Part Context

Part of the 56F8300 series of digital signal controllers from NXP (formerly Freescale). This series utilizes the 56800E core and is designed for demanding industrial and automotive environments. It provides pin-compatible options across the portfolio with varying memory densities and peripheral configurations.

Microcontrollers Replacement Considerations

Pin-compatible alternatives include other members of the 56F8300 and 56F8100 series. Check specific memory sizes and peripheral availability for direct substitution. Verify thermal specifications match the target environment requirements.

Microcontrollers FAQ

What is the maximum execution frequency of the MC56F8335?

The device executes code at up to 60 MHz, delivering 60 MIPS.

Does the MC56F8335 support CAN communication?

Yes, it includes an integrated FlexCAN module compatible with CAN 2.0 A/B standards.

What is the operating temperature range for the MC56F8335MFGE?

The specified range is -40°C to +125°C.
