MCM-1513M-301

Description：CMC 13A 2LN 300 OHM SMD
Series：MCM-1513M
Mfr：Pulse Electronics
Package：Tape & Reel (TR)

SKU:e8b331ae4db1 Category: Common Mode Chokes Brand: Pulse Electronics

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

MCM-1513M-301 is listed in the Common Mode Chokes range at ChipApex. The manufacturer field lists Pulse Electronics. Its product description is CMC 13A 2LN 300 OHM SMD. Review the specifications below when checking this part for your BOM.

Common Mode Chokes specifications for MCM-1513M-301

Description：CMC 13A 2LN 300 OHM SMD
Series：MCM-1513M
Mfr：Pulse Electronics
Package：Tape & Reel (TR)
Filter Type：Power Line
Number of Lines：2
Current Rating (Max)：13A
DC Resistance (DCR) (Max)：4.7mOhm
Voltage Rating - DC：80V
Voltage Rating - AC：-
Operating Temperature：-40°C ~ 125°C
Ratings：-
Approval Agency：-
Features：-
Mounting Type：Surface Mount
Size / Dimension：0.591" L x 0.512" W (15.00mm x 13.00mm)
Height (Max)：0.236" (6.00mm)
Package / Case：Horizontal, 4 PC Pad
Inductance @ Frequency：-
Impedance @ Frequency：300 Ohms @ 100 MHz

Common Mode Chokes datasheet and documents for MCM-1513M-301

MCM-1513M-301

Common Mode Chokes Overview

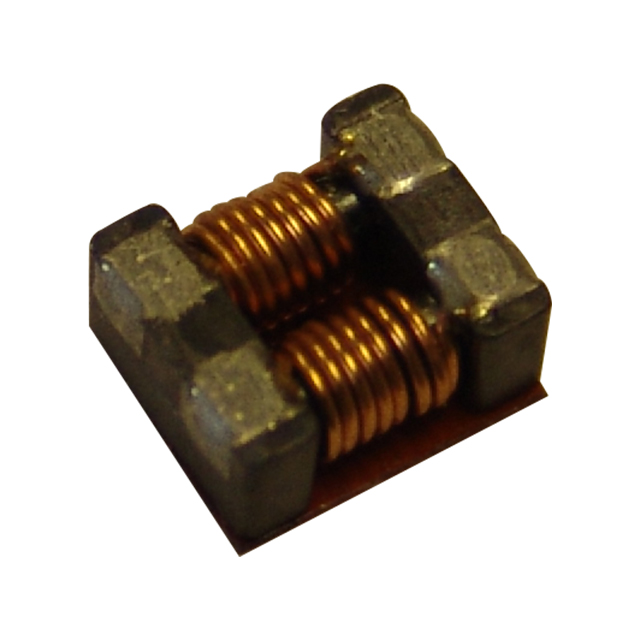

The MCM-1513M-301 is a surface-mount common mode choke from Pulse Electronics. It features a ferrite core and wirewound construction within a 12.5 mm x 12.5 mm x 8 mm package. The component provides an impedance of 300 Ohms at 100 MHz with a maximum DC resistance of 4.7 mOhms. It supports a current rating of 13A and operates between -40°C and 125°C.

Common Mode Chokes Feature Summary

Shielded SMD design for efficient power conversion
High current handling capability up to 13A
Wide operating temperature range

Common Mode Chokes Applications

Power supplies
Battery chargers
Voltage regulation circuits

Common Mode Chokes Procurement Notes

Verify the specific manufacturer part number against official datasheets to ensure compatibility. Confirm that the impedance, current rating, and physical dimensions match the target circuit requirements. Check RoHS compliance status if required by local regulations or end-product specifications.

Common Mode Chokes Selection Notes

Select this component when high current capacity and compact SMD footprint are required. Ensure the 300 Ohm impedance at 100 MHz aligns with EMI suppression needs. Verify that the 13A rating exceeds the maximum expected load current in the application.

Common Mode Chokes Part Context

This part belongs to the Pulse Electronics common mode choke family. It is designed for surface mount technology (SMT) applications. The BPSC and APSC series represent different inductor types within the same manufacturer portfolio, offering various shielding and current characteristics.
