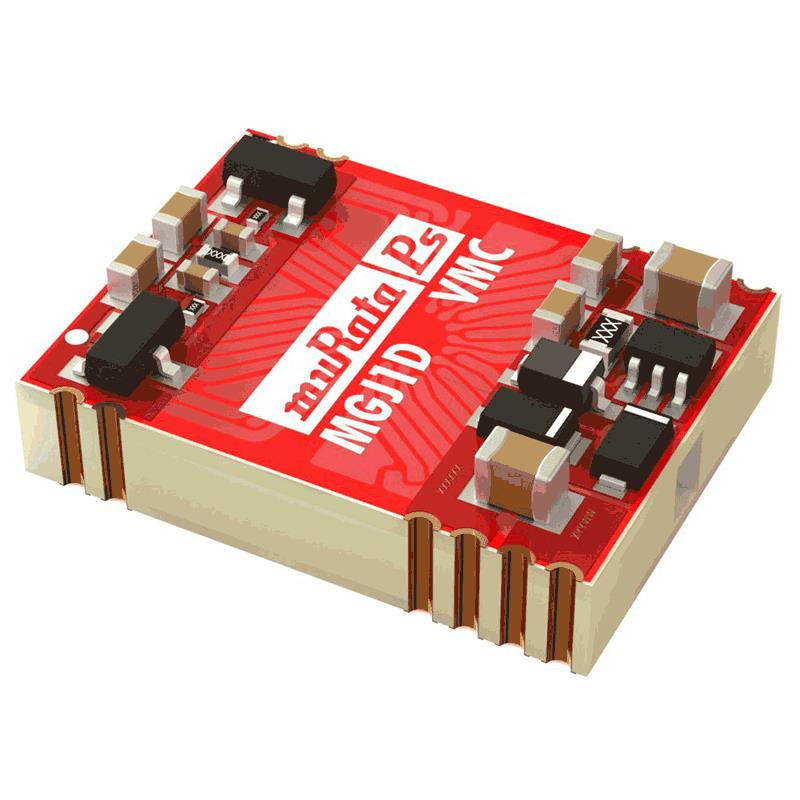

MGJ1D241505VMC-R13

MGJ1D241505VMC-R13 is listed in the DC DC Converters range at ChipApex. The manufacturer field lists Murata Power Solutions Inc.. Its product description is DC-DC SM 24-15/5V. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for MGJ1D241505VMC-R13

• Description：DC-DC SM 24-15/5V
• Series：MGJ1V(1W)
• Mfr：Murata Power Solutions Inc.
• Package：Tape & Reel (TR)
• Type：Isolated Module
• Number of Outputs：1
• Voltage - Input (Min)：21.6V
• Voltage - Input (Max)：26.4V
• Voltage - Output 1：15V
• Voltage - Output 2：-5V
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：50mA, 50mA
• Power (Watts)：1 W
• Voltage - Isolation：5.2 kV
• Applications：ITE (Commercial)
• Features：-
• Operating Temperature：-40°C ~ 105°C (With Derating)
• Efficiency：70%
• Mounting Type：Surface Mount
• Package / Case：24-SMD Module, 12 Leads
• Size / Dimension：0.63" L x 0.57" W x 0.18" H (16.0mm x 14.5mm x 4.5mm)
• Supplier Device Package：-
• Control Features：-
• Approval Agency：cURus
• Standard Number：62368-1
• Grade：-
• Qualification：-

DC DC Converters datasheet and documents for MGJ1D241505VMC-R13
