MK 214 X 2 44 G

$11.53

Description：Solder and plug pins, D0.5 mm
Series：MK 214 X 2
Mfr：Fischer Elektronik
Package：Tube

SKU:0e7e6f12d466 Category: Headers, Male Pins Brand: Fischer Elektronik

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

MK 214 X 2 44 G is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists Fischer Elektronik. Its product description is Solder and plug pins, D0.5 mm. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for MK 214 X 2 44 G

Description：Solder and plug pins, D0.5 mm
Series：MK 214 X 2
Mfr：Fischer Elektronik
Package：Tube
Connector Type：Header
Contact Type：Male Pin
Pitch - Mating：0.100" (2.54mm)
Number of Positions：44
Number of Rows：2
Row Spacing - Mating：0.100" (2.54mm)
Number of Positions Loaded：All
Style：Board to Board or Cable
Shrouding：Unshrouded
Mounting Type：Through Hole
Termination：Solder
Fastening Type：Push-Pull
Contact Length - Mating：0.165" (4.20mm)
Contact Length - Post：0.134" (3.40mm)
Overall Contact Length：0.606" (15.40mm)
Insulation Height：0.098" (2.50mm)
Contact Shape：Circular
Contact Finish - Mating：Gold
Contact Finish Thickness - Mating：7.87µin (0.200µm)
Contact Finish - Post：Gold
Contact Material：Copper Zinc
Insulation Material：Polyamide (PA46), Nylon 4/6, Glass Filled
Features：-
Operating Temperature：-40°C ~ 163°C
Material Flammability Rating：UL94 V-0
Insulation Color：Black
Current Rating (Amps)：1.5A
Voltage Rating：60VDC

Headers, Male Pins datasheet and documents for MK 214 X 2 44 G

MK 214 X 2 44 G

Headers, Male Pins Overview

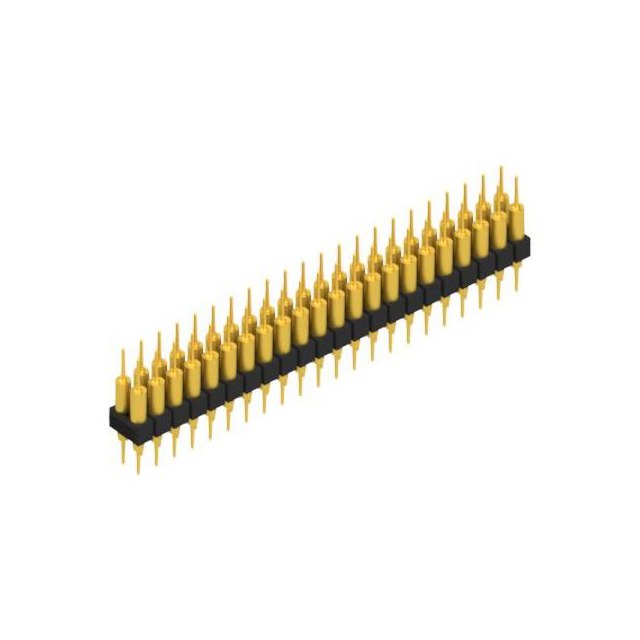

The Fischer Elektronik MK 214 X 2 44 G is a rectangular connector header designed for through-hole mounting. It features 44 positions arranged in two rows with a 0.100-inch (2.54 mm) pitch. The contacts are gold-plated to ensure reliable signal transmission and corrosion resistance. The component has an overall pin length of 1.142 inches, a mating pin length of 0.433 inches, and a solder tail length of 0.130 inches. The housing is black, and the product is currently active in production.
