MK LP 41 14 G

Headers, Male Pins Overview

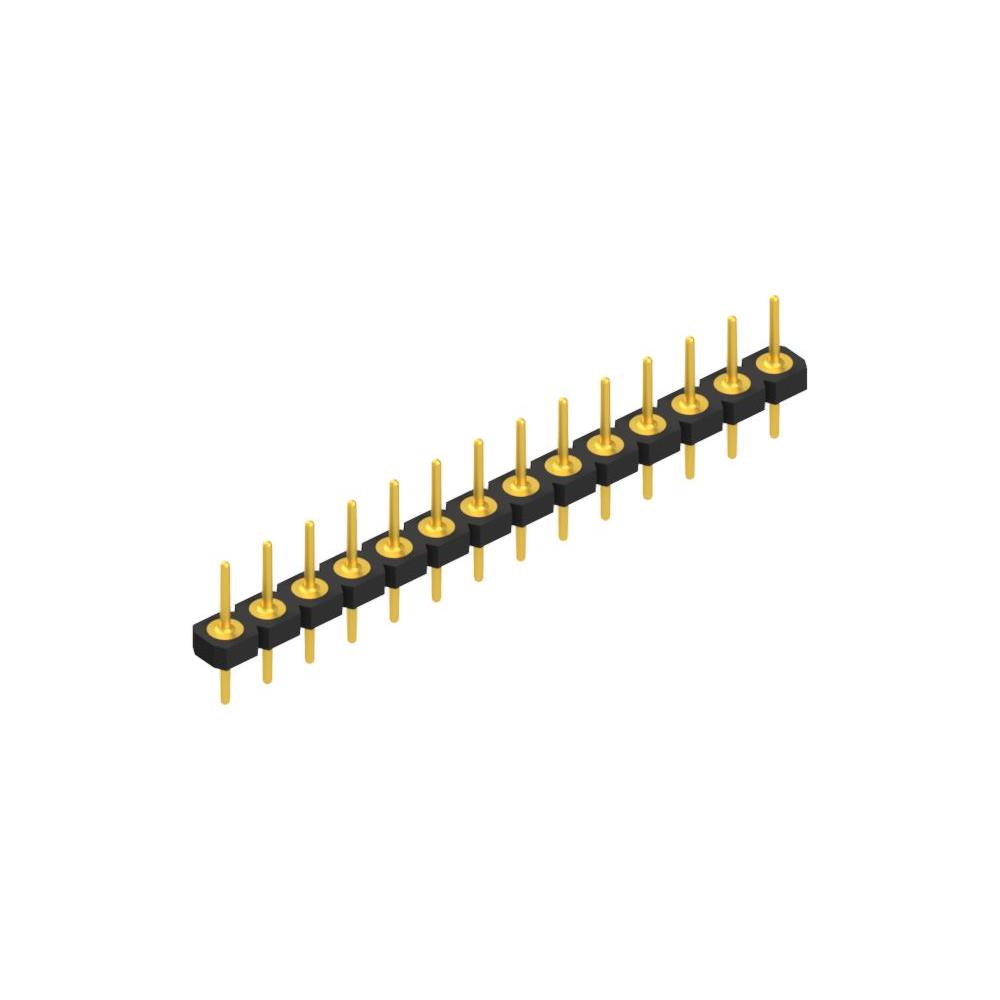

The MK LP 41 14 G is a male pin header connector from the Fischer Elektronik MK LP 41 series. It features a 2.54 mm pitch spacing and a single row configuration with 14 contacts. Designed for through-hole mounting, this low-profile component facilitates board-to-board and wire-to-board connections. The connector utilizes a tin-plated contact surface to ensure reliable conductivity.

Headers, Male Pins Feature Summary

• Low profile design suitable for space-constrained applications
• Tin-plated contact surface for corrosion resistance
• Contact sleeve featuring a nickel layer with 4 to 6 µm thickness

Headers, Male Pins Applications

• Board-to-board interconnections
• Wire-to-board connections
• General electronic circuit assembly

Headers, Male Pins Procurement Notes

Verify the specific part number against official Fischer Elektronik documentation to confirm contact count and row configuration. Ensure compatibility with standard 2.54 mm pitch requirements. Cross-reference datasheets for mechanical dimensions and plating specifications before integration into designs.

Headers, Male Pins Selection Notes

Select this component when a low-profile male header is required for through-hole PCB assembly. The 14-contact single-row layout suits compact interfaces. Verify that the tin-plated finish meets environmental requirements and that the 2.54 mm pitch aligns with mating connector standards.

Headers, Male Pins Part Context

This part belongs to the MK LP 41 series of male PCB connectors manufactured by Fischer Elektronik GmbH & Co. KG. The series offers various contact counts while maintaining consistent 2.54 mm pitch and low-profile characteristics. These connectors are engineered for robust electrical performance in industrial and consumer electronics.

Headers, Male Pins Replacement Considerations

Consult official Fischer Elektronik substitution lists for verified equivalents. Generic headers may differ in profile height or plating composition. Ensure any substitute maintains the 2.54 mm pitch and through-hole mounting style for mechanical compatibility.
