MN-810Q2-01A-CT

RF Transceiver Modules And Modems Overview

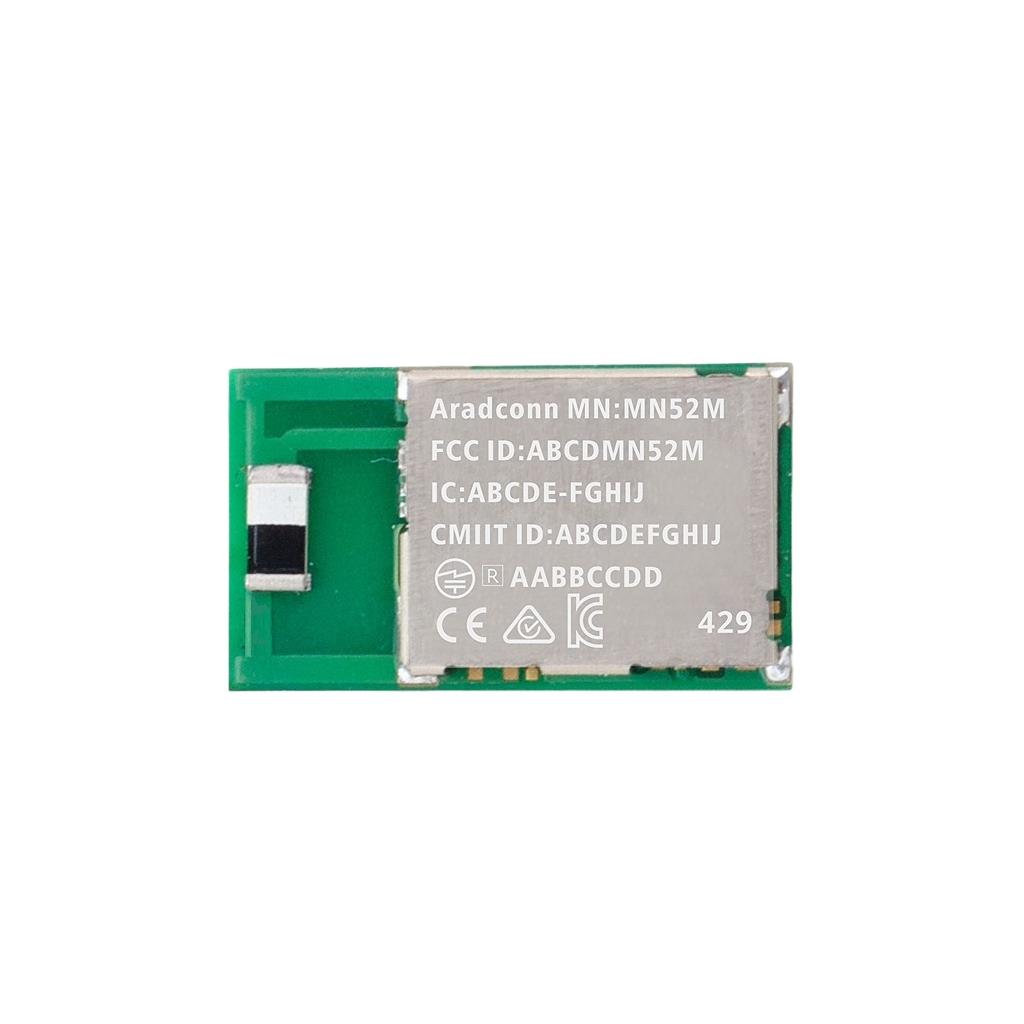

The MN-810Q2-01A-CT is a Surface Mount Device (SMD) Bluetooth Low Energy (BLE) transceiver module manufactured by Arad Connectivity. It integrates the Nordic nRF52810 system-on-chip and operates within the 2.402GHz to 2.48GHz ISM band, supporting Bluetooth v5.4 protocol standards. The module features an integrated chip antenna and supports GFSK modulation with a maximum data rate of 2Mbps. Electrical specifications include a transmit power of 4dBm and a receive sensitivity of -96dBm. Power consumption is rated at 4.6mA for both transmission and reception modes. The device requires a supply voltage between 1.71V and 3.6V and includes 192kB of flash memory and 24kB of RAM. It offers multiple serial interface options including GPIO, I2C, SPI, and UART.

RF Transceiver Modules And Modems Feature Summary

• Integrates the Nordic nRF52810 SoC for compact BLE connectivity
• Supports Bluetooth v5.4 protocol with high-speed 2Mbps data rates
• Features integrated chip antenna design for space-constrained applications
• Provides versatile serial communication interfaces including SPI, I2C, and UART

RF Transceiver Modules And Modems Applications

• Wearable electronics and health monitoring devices
• Smart home automation sensors and actuators
• Industrial IoT asset tracking tags
• Bluetooth mesh networking nodes

RF Transceiver Modules And Modems Procurement Notes

Verify that the specific ordering suffix matches the required configuration, as variations may exist within the product line. Confirm compliance with RoHS directives and REACH regulations prior to integration. Ensure the Moisture Sensitivity Level (MSL 3) handling procedures are strictly followed during assembly to prevent damage. Cross-reference the datasheet document MN-810Q2-01A-CT for precise pinout definitions and electrical limits.

RF Transceiver Modules And Modems Selection Notes

Select this module when a small form factor is critical due to its 10-SMD package dimensions. It is suitable for designs requiring low power consumption with symmetric current draw during active states. Consider the integrated antenna if PCB space is limited, though external antennas offer flexibility. Verify that the host microcontroller can support the required voltage range and interface protocols.

RF Transceiver Modules And Modems Part Context

This component belongs to the MN series of Bluetooth modules from Arad Connectivity, which utilize Nordic Semiconductor's nRF52 family chips. The MN-810Q2-01A-CT specifically leverages the nRF52810, positioning it as a cost-effective solution for basic BLE applications compared to higher-performance variants like those based on the nRF52840.

RF Transceiver Modules And Modems Replacement Considerations

Direct substitutes include other modules based on the nRF52810 chip. Check for compatible packages and antenna types when evaluating alternatives.
