MN-832Q2-01A-CT

RF Transceiver Modules And Modems Overview

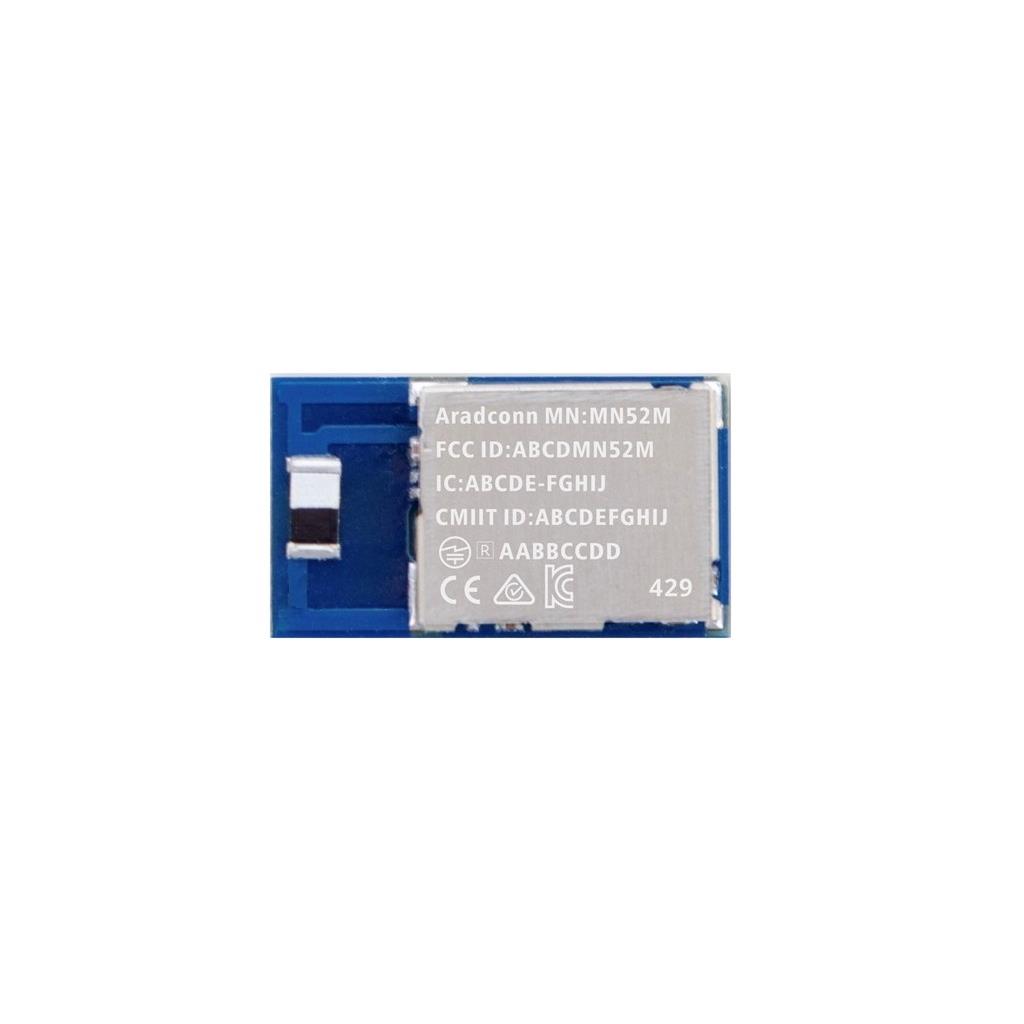

The MN-832Q2-01A-CT is a Bluetooth Low Energy (BLE) transceiver module manufactured by Arad Connectivity. It integrates the Nordic Semiconductor nRF52832 System-on-Chip, providing robust wireless communication capabilities within a compact surface-mount package. The module operates in the 2.402GHz to 2.48GHz ISM band and supports Bluetooth v5.x protocols. Key electrical specifications include a maximum output power of 4dBm, a receive sensitivity of -96dBm, and a data rate of up to 2Mbps. It features integrated chip antennas and requires a supply voltage between 1.71V and 3.6V.

RF Transceiver Modules And Modems Feature Summary

• Integrates the nRF52832 SoC for ultra-low power BLE performance
• Supports Bluetooth v5.x protocol stack with GFSK modulation
• Features integrated chip antenna design for space-constrained applications
• Provides multiple serial interface options including GPIO, I2C, SPI, and UART

RF Transceiver Modules And Modems Applications

• Bluetooth Low Energy peripheral devices
• Industrial sensor nodes and IoT gateways
• Medical electronic monitoring equipment
• Smart home automation controllers

RF Transceiver Modules And Modems Procurement Notes

Verify the specific suffix '01A-CT' against official Arad Connectivity documentation to confirm exact pinout, firmware version, and regulatory certifications. Ensure compatibility with target PCB layout requirements for the 10-SMD module form factor. Confirm RoHS compliance status and MSL rating prior to assembly planning.

RF Transceiver Modules And Modems Selection Notes

Select this module when a complete BLE solution based on the nRF52832 architecture is required. It is suitable for designs needing integrated RF components to reduce development time. Consider the 10-SMD package size and operating temperature range of -40°C to 85°C for environmental suitability.

RF Transceiver Modules And Modems Part Context

This component belongs to the MN series of Bluetooth modules from Arad Connectivity. These modules are designed to simplify wireless integration by embedding the radio, antenna, and necessary passive components into a single SMD unit. The series targets developers seeking reliable connectivity without managing complex RF circuit design.

RF Transceiver Modules And Modems Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided source material. Verify functional equivalence with other nRF52832-based modules only if they match the exact pinout and mechanical dimensions.
