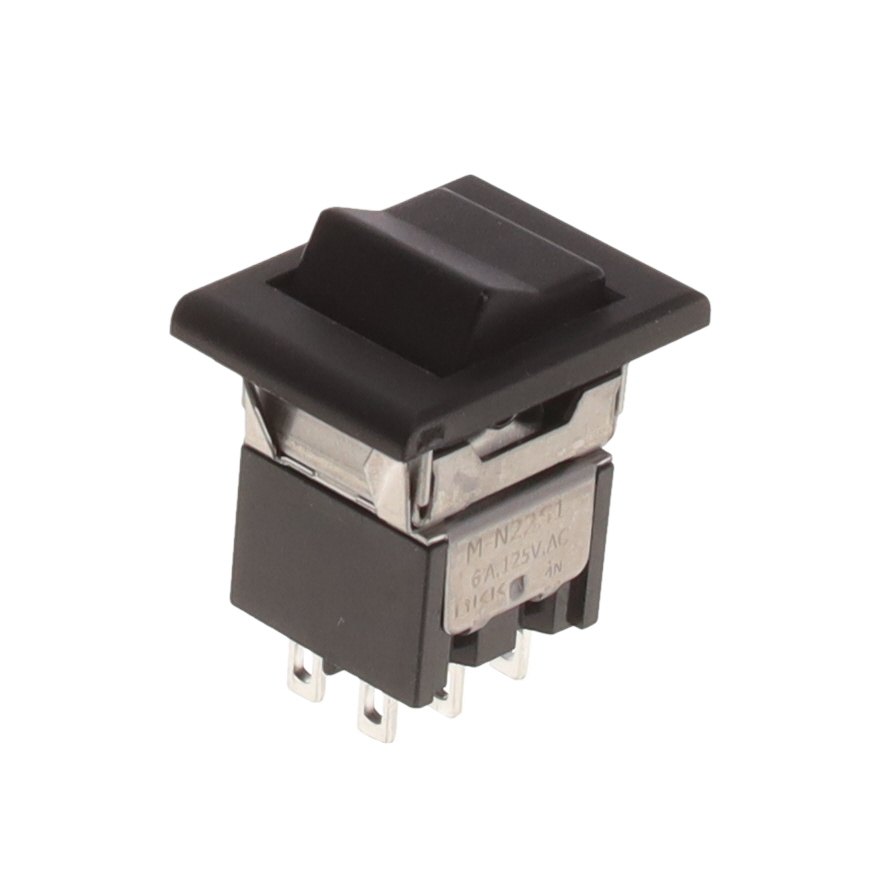

MN22TJW01-FA-1A

MN22TJW01-FA-1A is listed in the Rocker Switches range at ChipApex. The manufacturer field lists NKK Switches. Its product description is SWITCH ROCKER MINIATURE SNAP. Review the specifications below when checking this part for your BOM.

Rocker Switches specifications for MN22TJW01-FA-1A

• Description：SWITCH ROCKER MINIATURE SNAP
• Series：M
• Mfr：NKK Switches
• Package：Bulk
• Mounting Type：Panel Mount, Snap-In
• Circuit：DPDT
• Switch Function：On-On
• Current Rating (Amps)：6A (AC), 4A (DC)
• Voltage Rating - AC：125 V
• Voltage Rating - DC：30 V
• Actuator Type：Concave (Standard V)
• Color - Actuator/Cap：Black
• Actuator Marking：No Marking
• Illumination Type, Color：-
• Illumination Voltage (Nominal)：-
• Termination Style：Solder Lug
• Ingress Protection：-
• Features：-
• Panel Cutout Dimensions：Rectangular - 15.90mm x 13.10mm
• Operating Temperature：-30°C ~ 85°C
• Approval Agency：UL

Rocker Switches datasheet and documents for MN22TJW01-FA-1A
