MPC8306CVMADDCA

Overview

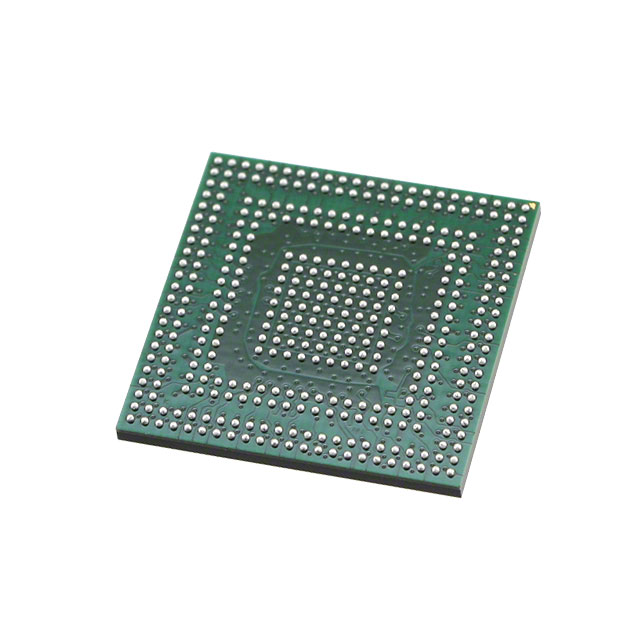

The MPC8306CVMADDCA is a PowerQUICC II Pro integrated communications processor featuring an e300c3 core operating at 133 MHz. It utilizes a MAPBGA-369 package with 369 pins and supports a 32-bit data bus width. The device includes 16 KB L1 instruction cache and 16 KB L1 data cache. Operating voltage is 1 V for the core, with I/O voltages of 1.8 V and 3.3 V. It functions within a temperature range of -40°C to +105°C.

Feature Summary

• Integrates QUICC Engine technology with five unified communication controllers supporting Ethernet, HDLC, TDM, and IEEE 1588 protocols.
• Includes a DDR2 memory controller with a 16-bit interface capable of up to 266-MHz data rates.
• Features an enhanced local bus controller supporting parallel NOR and NAND Flash boot operations.
• Provides dual-role USB 2.0 high-speed host/device/OTG capabilities alongside FlexCAN and eSDHC interfaces.

Applications

• Residential gateways
• Modem/routers
• Industrial control systems
• Test and measurement applications

Procurement Notes

Verify component authenticity through authorized NXP channels. Confirm datasheet revision MPC8306EC Rev. 3 compatibility. Ensure environmental specifications match operational requirements. Validate pinout alignment with MAPBGA-369 footprint. Check for moisture sensitivity handling instructions prior to assembly.

Selection Notes

Select this processor for networking applications requiring integrated communication protocols and low power consumption. Consider the e300c3 core performance relative to system processing needs. Evaluate DDR2 memory interface constraints for external storage design. Assess thermal management requirements based on specified junction temperatures.

Part Context

Part of the MPC8306 PowerQUICC II Pro family designed for cost-effective, highly integrated communications solutions. Extends previous offerings with higher CPU performance and faster interfaces. Targets markets needing reduced time-to-market and board real estate optimization.

Replacement Considerations

Consult official NXP documentation for direct substitutes. Verify functional equivalence regarding QUICC Engine support and interface availability. Ensure package dimensions and pin configurations remain compatible with existing PCB layouts.
