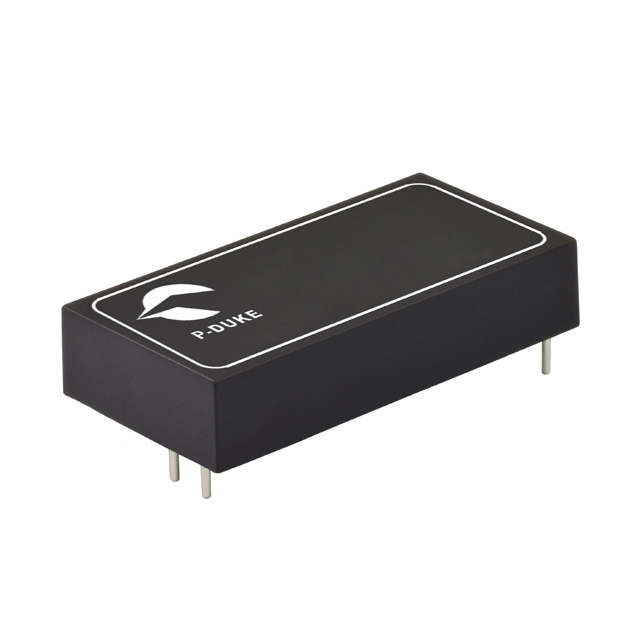

MPD30-24S05W

MPD30-24S05W is listed in the DC DC Converters range at ChipApex. The manufacturer field lists P-DUKE Technology. Its product description is DC DC CONVERTER 5V 30W. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for MPD30-24S05W

• Description：DC DC CONVERTER 5V 30W
• Series：MPD30W (30W)
• Mfr：P-DUKE Technology
• Package：Tube
• Type：Isolated Module
• Number of Outputs：1
• Voltage - Input (Min)：9V
• Voltage - Input (Max)：36V
• Voltage - Output 1：5V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：6A
• Power (Watts)：30 W
• Voltage - Isolation：5 kV
• Applications：ITE (Commercial), Medical
• Features：Adjustable Output
• Operating Temperature：-40°C ~ 105°C (With Derating)
• Efficiency：88.50%
• Mounting Type：Through Hole
• Package / Case：6-DIP Module, 5 Leads
• Size / Dimension：2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm)
• Supplier Device Package：-
• Control Features：-
• Approval Agency：CB, CE, cURus, FCC
• Standard Number：-
• Grade：-
• Qualification：-

DC DC Converters datasheet and documents for MPD30-24S05W
