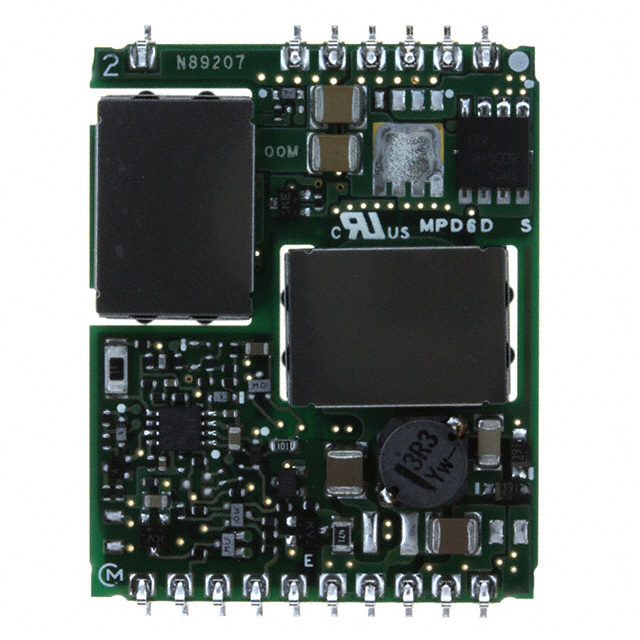

MPD6D207S

MPD6D207S is listed in the DC DC Converters range at ChipApex. The manufacturer field lists Murata Power Solutions Inc.. Its product description is DC DC CONVERTER 3.3V 30W. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for MPD6D207S

• Description：DC DC CONVERTER 3.3V 30W
• Series：MPD
• Mfr：Murata Power Solutions Inc.
• Package：Tray
• Type：Isolated Module
• Number of Outputs：1
• Voltage - Input (Min)：18V
• Voltage - Input (Max)：36V
• Voltage - Output 1：3.3V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：9A
• Power (Watts)：30 W
• Voltage - Isolation：1.5 kV
• Applications：ITE (Commercial)
• Features：Remote On/Off, OCP, OVP
• Operating Temperature：-40°C ~ 85°C
• Efficiency：91%
• Mounting Type：Surface Mount
• Package / Case：20-SMD Module, 17 Leads
• Size / Dimension：1.47" L x 1.19" W x 0.31" H (37.3mm x 30.1mm x 8.0mm)
• Supplier Device Package：-
• Control Features：Enable, Active Low
• Approval Agency：-
• Standard Number：-
• Grade：-
• Qualification：-
