MPRLF0001PG00001C

Pressure Sensors Transducers Overview

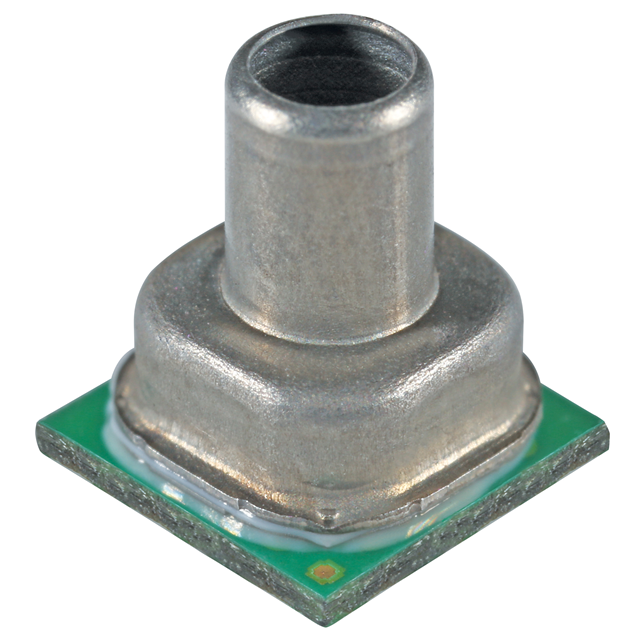

The Honeywell MPRLF0001PG00001C is a micro pressure sensor from the MPR series, designed for gauge pressure measurement. It features a working pressure of 1 PSI (6.89 kPa) and a maximum pressure rating of 5 PSI (34.47 kPa). The device provides a 24-bit digital output via an SMD module package with male 0.1-inch tube ports. It operates on a supply voltage range of 1.8V to 3.6V and offers an accuracy of ±0.25%. The sensor functions within a temperature range of -40°C to 85°C.

Pressure Sensors Transducers Feature Summary

• Integrated ASIC signal conditioning for temperature compensation and offset calibration
• Digital output interface compatible with I2C or SPI protocols
• Stainless steel pressure interface suitable for various liquid media

Pressure Sensors Transducers Applications

• Medical devices requiring precise low-pressure monitoring
• Commercial appliances with micro-pressure control needs
• Industrial HVAC systems utilizing board-mounted sensors

Pressure Sensors Transducers Procurement Notes

Verify component authenticity through authorized distributors due to potential counterfeit risks. Confirm specific ordering suffixes match exact electrical and mechanical requirements. Check current availability status as manufacturing lifecycles may affect supply continuity. Ensure proper handling procedures are followed during surface mount assembly to maintain sensor integrity.

Pressure Sensors Transducers Selection Notes

Select this model for applications demanding high precision in low-pressure environments. The 24-bit resolution supports detailed data acquisition for sensitive measurements. Consider the SMD form factor for compact PCB designs. Verify port compatibility with existing tubing systems before integration into final assemblies.

Pressure Sensors Transducers Part Context

This component belongs to the Honeywell MPR MicroPressure series, which utilizes piezoresistive silicon technology. The series is engineered for cost-effective solutions in consumer and industrial sectors. It integrates advanced sensing schemes to provide reliable performance across diverse environmental conditions.

Pressure Sensors Transducers Replacement Considerations

MPRLS0001PG0000SA is a documented substitute part number available from TE Connectivity Measurement Specialties. Evaluate mechanical fit and electrical parameter alignment before substitution.
