MPXH6300AC6T1

Pressure Sensors Transducers Overview

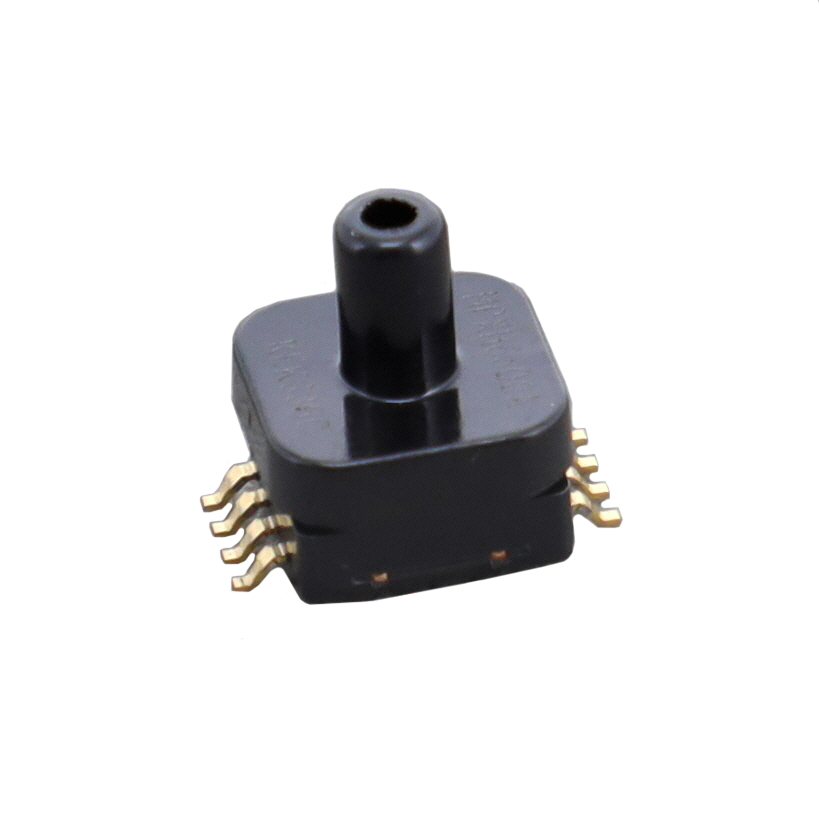

The MPXH6300AC6T1 is an absolute pressure sensor from the MPXH6300A series, manufactured by STMicroelectronics. It features a piezoresistive sensing element with an integrated signal conditioning circuit. The device operates on a supply voltage of 4.74V to 5.46V and provides an analog voltage output ranging from 0.3V to 4.9V. It measures absolute pressures between 20kPa and 304kPa (2.9PSI to 44.09PSIA). The sensor offers ±1.5% accuracy and includes temperature compensation. It is housed in an 8-SSOP package with a top port size of 0.13 inches (3.3mm) and supports surface mount installation.

Pressure Sensors Transducers Feature Summary

• Integrated temperature compensation for stable performance across operating ranges
• Piezoresistive sensing technology with onboard signal conditioning
• Analog voltage output compatible with standard interface circuits
• Surface-mount design with integrated port for board-level integration

Pressure Sensors Transducers Applications

• Board-mounted pressure monitoring systems
• Industrial process control instrumentation
• HVAC system pressure detection
• Medical device pneumatic monitoring

Pressure Sensors Transducers Procurement Notes

Verify manufacturer designation as STMicroelectronics or NXP USA Inc. depending on source documentation. Confirm RoHS3 compliance status and REACH regulatory standing. Ensure package type matches 8-SSOP specifications. Validate port configuration corresponds to axial barbless design. Cross-reference datasheet version for accurate electrical parameters.

Pressure Sensors Transducers Selection Notes

Select this component for applications requiring absolute pressure measurement within the 20kPa to 304kPa range. Consider the ±1.5% accuracy specification for precision requirements. Evaluate the analog voltage output compatibility with downstream processing units. Assess thermal stability needs against the -40°C to 125°C operating temperature range. Verify physical space constraints for the 8-SSOP surface mount package.

Pressure Sensors Transducers Part Context

This part belongs to the MPXH6300A series of absolute pressure sensors. It shares family characteristics with other variants like MPXH6300A6U, differing primarily in packaging and port configurations. The series utilizes piezoresistive technology for robust pressure sensing. Components are designed for industrial and commercial applications requiring reliable pressure data acquisition.

Pressure Sensors Transducers Replacement Considerations

MPXH6300A6U serves as a related variant within the same product family, offering similar electrical characteristics but potentially different packaging or port styles.
