MT29F1G08ABBDAHC:D

Memory IC Overview

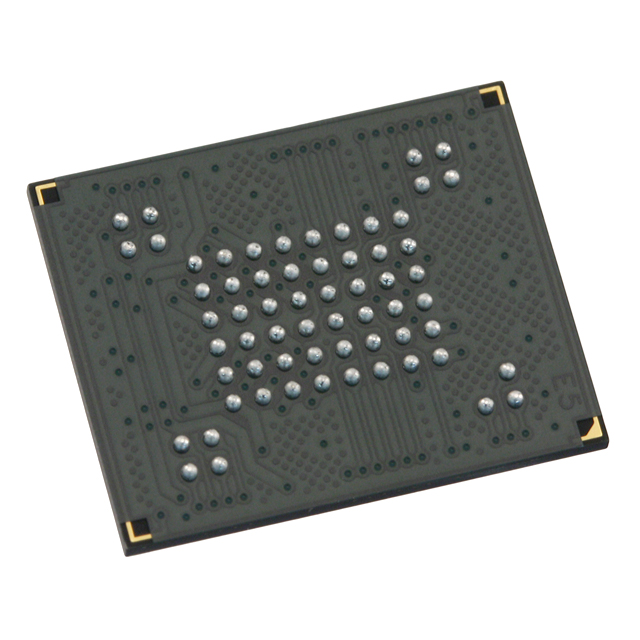

The MT29F1G08ABBDAHC:D is a 1 Gbit SLC NAND flash memory device manufactured by Micron Technology. It features an asynchronous parallel interface with an organization of 128M x 8 bits and operates within a voltage range of 1.7 V to 1.95 V. The component is housed in a 63-ball VFBGA package (10.5x13 mm) designed for surface mount technology. It supports industrial temperature ranges from -40°C to +85°C, ensuring reliable performance in demanding environments.

Memory IC Feature Summary

• Provides non-volatile data storage using Single-Level Cell (SLC) NAND technology for high endurance and reliability.
• Utilizes an asynchronous parallel interface to support standard host controller connections without complex timing requirements.
• Engineered for industrial-grade operation, maintaining functionality across extended temperature extremes.

Memory IC Applications

• Industrial control systems requiring robust data retention
• Automotive embedded storage solutions
• Consumer electronics firmware storage

Memory IC Procurement Notes

Verify the specific suffix 'D' indicates the commercial/industrial temperature grade and package variant as defined in the official Micron datasheet. Confirm RoHS compliance status and moisture sensitivity level (MSL 3) prior to assembly. Ensure the ordering part number matches the exact pinout and electrical specifications required by the target design to avoid compatibility issues.

Memory IC Selection Notes

Select this component when a 1 Gbit capacity with an 8-bit parallel interface is required for space-constrained applications. The VFBGA-63 package offers a compact footprint suitable for dense PCB layouts. Consider the asynchronous access timing characteristics and the 1.8V nominal supply voltage when designing the power and signal integrity architecture for the host system.

Memory IC Part Context

This part belongs to the Micron MT29F series of NAND flash memories, which are widely used for code and data storage. The MT29F1G08ABBDAHC:D specifically represents the 1 Gbit density variant within the ABB family, distinguished by its 63-ball VFBGA packaging and industrial temperature rating capabilities compared to commercial variants.

Memory IC Replacement Considerations

Direct substitutes include other Micron parts within the MT29F1G08ABBDAxx series with compatible suffixes for package and temperature grades. Cross-brand replacements require careful verification of pin compatibility, voltage levels, and command set adherence to ensure functional equivalence in existing designs.
