MT40A1G16TB-062E IT:F TR

Memory IC Overview

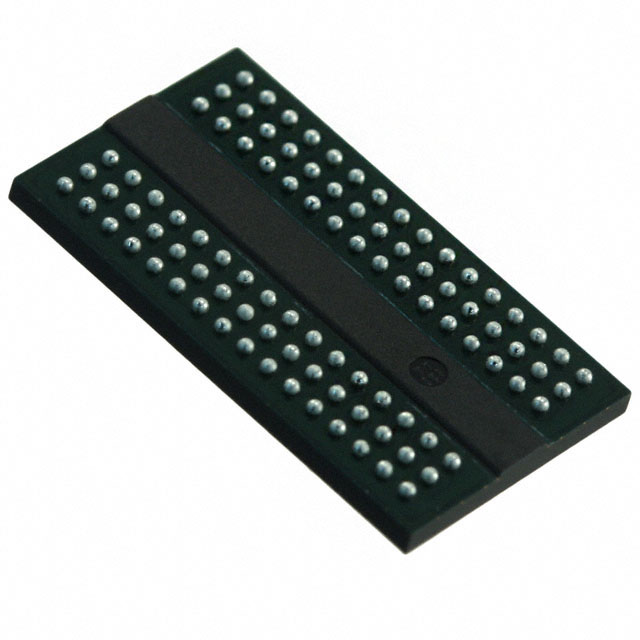

The MT40A1G16TB-062E IT:F TR is a DDR4 SDRAM component manufactured by Micron Technology Inc. It features a storage capacity of 16 Gbit with an organization of 1 Gigabit x 16 bits. The device operates at a maximum clock frequency of 1.6 GHz and utilizes a 96-ball FBGA package measuring 7.5mm x 13.0mm. It supports a supply voltage range of 1.14V to 1.26V and functions within a temperature range of -40°C to 95°C (TC).

Memory IC Feature Summary

• Supports high-speed data transfer via 8n-prefetch architecture combined with DDR interface for efficient I/O operations.
• Includes on-die programmable VREFDQ generation and 1.2V pseudo-open-drain I/O for signal integrity.
• Features advanced power management capabilities including Low Power Auto Self-Refresh (LPASR) and Temperature Controlled Refresh (TCR).
• Provides comprehensive error checking mechanisms such as Command/Address parity and Data Bus Write CRC.

Memory IC Applications

• High-performance server memory systems requiring high bandwidth.
• Desktop computer platforms utilizing standard DIMM configurations.
• Industrial computing environments demanding extended temperature operation ranges.
• Embedded systems needing dense parallel DRAM solutions.

Memory IC Procurement Notes

Verify the specific suffix 'IT' indicates automotive qualification status against official Micron documentation, as some sources list this variant as obsolete. Confirm the 'TR' designation corresponds to reel packaging rather than tray or bulk formats. Ensure compatibility with JEDEC JESD-79-4 standards for DDR4 connectivity testing before integration into final designs.

Memory IC Selection Notes

Select this component when a 16Gb density with x16 width is required for parallel interface applications. Consider the -40°C to 95°C operating range for industrial or automotive use cases where commercial grade parts are insufficient. Evaluate the 96-ball FBGA footprint constraints against available PCB real estate. Compare performance metrics against newer DDR5 alternatives if future-proofing is a priority.

Memory IC Part Context

This part belongs to the Micron MT40AxGxx series of DDR4 SDRAM components designed for general-purpose memory applications. The TB code typically denotes a specific internal bank configuration optimized for high-density storage. The IT suffix often implies automotive-grade reliability standards, though availability varies by region and manufacturing batch.

Memory IC Replacement Considerations

Publicly confirmed direct substitute part numbers are not available in the provided source material. Verify cross-compatibility with other MT40A1G16 variants from Micron or Alliance Memory based on pinout and electrical specifications.
