MTQ-LAT3-B01.R2

RF Transceiver Modules And Modems Overview

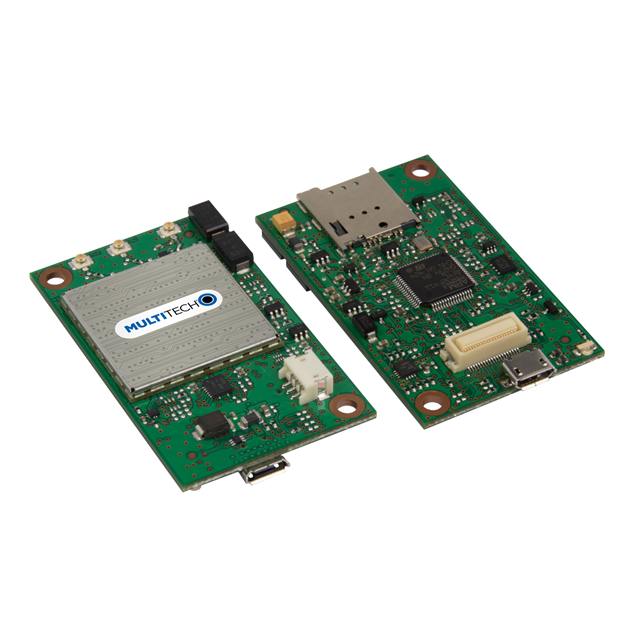

The MTQ-LAT3-B01.R2 is a cellular RF transceiver module from the MultiTech Dragonfly series, designed for LTE Category 4 applications. It supports 3GPP Release 11 standards with peak downlink speeds of 150 Mbps and peak uplink speeds of 50 Mbps. The module operates on frequencies including 850MHz, 900MHz, 1800MHz, and 1900MHz. It features a chassis mount package type and utilizes U.FL connectors for antenna attachment without an integrated antenna. Power supply requirements are specified at 3.3V and 5V.

RF Transceiver Modules And Modems Feature Summary

• Supports LTE Category 4 performance compliant with 3GPP Release 11 specifications
• Provides serial interface connectivity via I2C, SPI, UART, and USB protocols
• Designed for chassis mounting with external U.FL antenna interfaces

RF Transceiver Modules And Modems Applications

• Industrial IoT gateways requiring high-speed data transmission
• M2M communication devices needing reliable LTE Cat 4 connectivity
• Embedded systems integrating cellular capabilities via standard serial interfaces

RF Transceiver Modules And Modems Procurement Notes

Verify the specific revision suffix against official documentation to ensure compatibility with existing hardware designs. Confirm that the required voltage rails match the module's 3.3V and 5V specifications. Check for any regional frequency band restrictions relevant to the deployment location. Ensure proper thermal management solutions are implemented due to the chassis mount form factor.

RF Transceiver Modules And Modems Selection Notes

Select this module when LTE Category 4 throughput is sufficient for the application. Consider the need for external antennas given the U.FL interface design. Evaluate the available serial interfaces against the host processor's capabilities. Compare power consumption profiles against battery life requirements if applicable.

RF Transceiver Modules And Modems Part Context

This component belongs to the MultiTech Dragonfly family of cellular modules. These modules are engineered for embedded applications requiring robust wireless connectivity. The series offers various configurations tailored to different regional bands and interface needs. This specific model focuses on global LTE Cat 4 performance within a compact footprint suitable for space-constrained designs.

RF Transceiver Modules And Modems Replacement Considerations

Consult official manufacturer documentation for confirmed substitute part numbers. Verify pinout and interface compatibility before considering alternatives.
