MTSW-116-22-L-D-400

Headers, Male Pins Overview

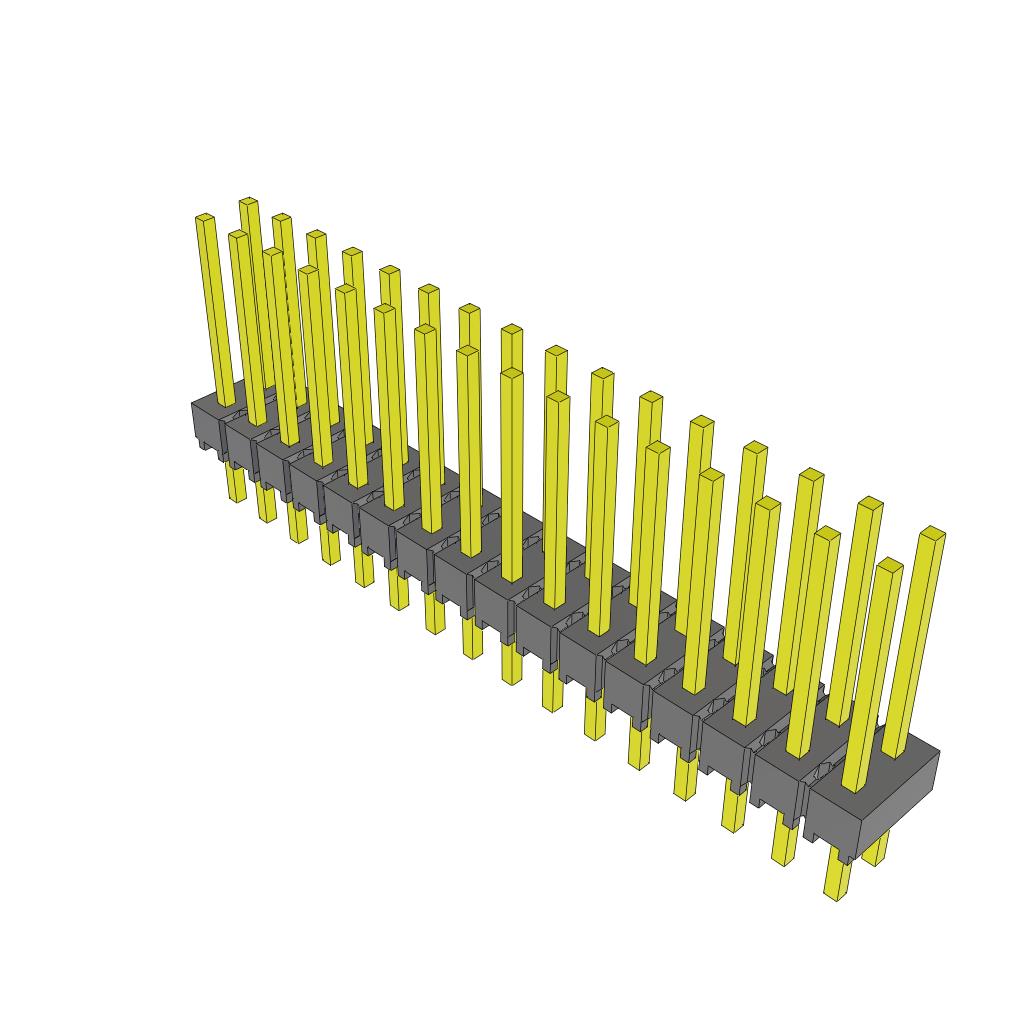

The MTSW-116-22-L-D-400 is a modified header strip manufactured by Samtec Inc., featuring a 0.100" (2.54mm) pitch and two rows of contacts. This specific part number designates a vertical orientation with 32 positions, utilizing .025" square posts. The connector employs through-hole termination for secure PCB mounting. It utilizes a Flex Stack design to allow for variable post heights and body positioning adjustments in precise increments, accommodating diverse board stack-up requirements.

Headers, Male Pins Feature Summary

• Flex Stack design enables variable post height and body position adjustments
• Modified .025" square post terminal system for reliable mating
• Available in both vertical and right-angle orientations
• Through-hole termination ensures stable mechanical connection

Headers, Male Pins Applications

• Board-to-board interconnections requiring variable stack heights
• High-density electronic assemblies needing flexible positioning
• Automotive A-Series product applications
• General purpose PCB header strips with custom height needs

Headers, Male Pins Procurement Notes

Verify the exact suffix code to confirm the specific post length and orientation variant required for your assembly. Ensure compatibility with mating socket strips such as the SSW series. Confirm that the selected pin length accommodates the target board thickness and any overlying components without interference.

Headers, Male Pins Selection Notes

Select this component when standard fixed-height headers are insufficient due to varying board thicknesses or component clearances. The adjustable nature of the Flex Stack design allows for fine-tuning the connection height. Consider the thermal profile during soldering to maintain contact integrity and insulation properties within specified operating ranges.

Headers, Male Pins Part Context

This part belongs to the MTSW series, which represents a variation on the classic TSW header strip. The series provides a wide range of overall pin lengths to satisfy various application needs. It is designed for high-reliability connections in environments where standard spacing may not suffice, offering flexibility in mechanical configuration while maintaining electrical performance standards.

Headers, Male Pins Replacement Considerations

Direct substitutes include other MTSW variants with different suffix codes indicating varied post lengths or orientations, such as MTSW-116-22-L-D-275-NA. Cross-reference mating connectors like SSW sockets to ensure proper interface compatibility. Verify that alternative parts meet the same pitch, current rating, and temperature specifications.
