MV50152

LED Indication - Discrete Overview

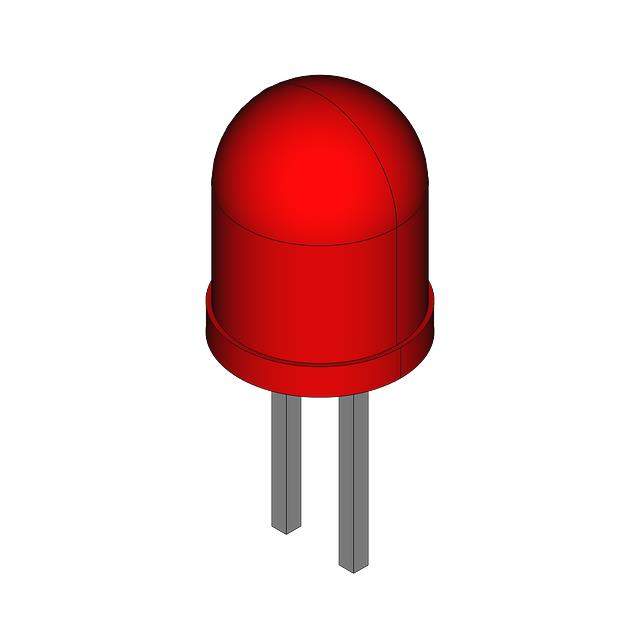

The MV50152 is a discrete red LED indicator manufactured by Fairchild Semiconductor. It features a bullet profile T-1 3/4 package with radial through-hole mounting. The device emits red light and has a clear lens configuration. Key electrical parameters include a forward voltage of 1.6V. The component is designed for general indication applications and complies with RoHS standards, being lead-free.

LED Indication - Discrete Feature Summary

• Bullet profile T-1 3/4 form factor
• Clear lens design for red emission
• Radial through-hole construction

LED Indication - Discrete Applications

• Panel status indication
• Power supply indicators
• General equipment signaling

LED Indication - Discrete Procurement Notes

Verify the current lifecycle status as the component may be obsolete. Confirm that the manufacturer designation aligns with Fairchild Semiconductor or its successor entity, onsemi. Ensure the specific ordering suffix matches the required radial lead configuration and lens clarity specifications before finalizing procurement.

LED Indication - Discrete Selection Notes

Select this component when a standard T-1 3/4 red LED with a clear lens is required for through-hole assembly. Consider the 1.6V forward voltage drop in circuit design. Verify compatibility with existing panel cutouts due to the specific bullet profile dimensions.

LED Indication - Discrete Part Context

This part belongs to the discrete LED indication category. It is distinct from surface-mount LEDs and high-power lighting solutions. The T-1 3/4 size is a legacy standard often used in industrial and consumer electronics for visible status signaling.

LED Indication - Discrete Replacement Considerations

Check for direct substitutes within the MV5xxx series from Fairchild/onsemi. Verify pinout and mechanical dimensions if considering alternatives from other manufacturers to ensure fitment in existing PCB layouts.
