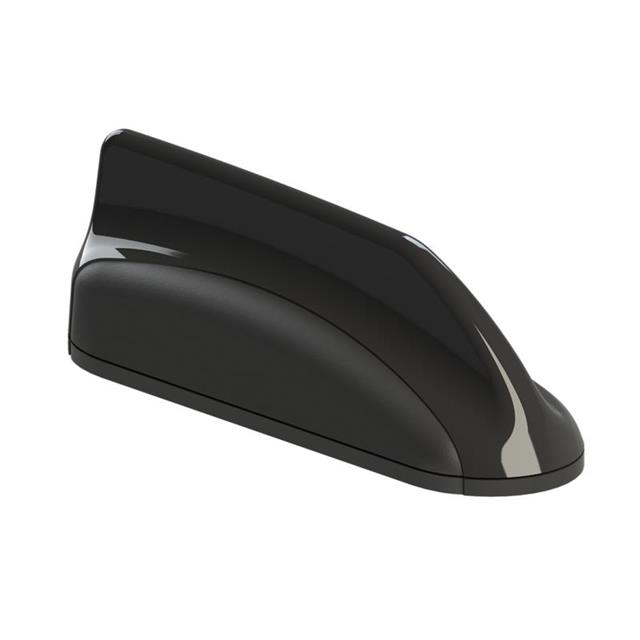

MXFG508-3C3C3J3J2C-BLK-180

Antennas RF Overview

The MXFG508-3C3C3J3J2C-BLK-180 is a low-profile multi-band RF antenna designed for cellular, navigation, and Wi-Fi applications. It features five integrated cables with SMA male connectors: two for 5G/LTE cellular, two for Wi-Fi, and one for GNSS. The unit supports frequency ranges including 617MHz to 700MHz, 700MHz to 960MHz, 1.7GHz to 2.7GHz, 2.4GHz to 2.5GHz, 3.4GHz to 4.2GHz, and 4.9GHz to 6GHz. It has a maximum power rating of 10 W and utilizes through-hole mounting.

Antennas RF Feature Summary

• Integrates five distinct connection points for simultaneous cellular, Wi-Fi, and GNSS signal transmission
• Supports multiple frequency bands covering LTE, 5G, Wi-Fi 6e, and GPS/GNSS systems
• Features a low-profile design suitable for space-constrained installations

Antennas RF Applications

• 5G and LTE cellular connectivity modules
• Wi-Fi 6e access points and routers
• GNSS navigation receivers

Antennas RF Procurement Notes

Verify the specific cable lengths and connector types against project requirements before ordering. Confirm that the through-hole mounting style aligns with the target PCB layout. Ensure the operating frequency range covers all necessary communication bands for the intended application environment.

Antennas RF Selection Notes

Select this component when a single solution is required for combined cellular, Wi-Fi, and positioning needs. Consider the physical dimensions and cable routing constraints due to the five-cable configuration. Evaluate the SMA male interface compatibility with existing system connectors.

Antennas RF Part Context

This model belongs to the MaxFin series from Mobile Mark Antenna Solutions, which focuses on compact, multi-functional antenna designs. The part number suffix indicates specific cable configurations and color options within the product line.

Antennas RF Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided documentation. Verify compatibility with existing RF interfaces and mounting structures if considering alternative models.
