MXTOBFI32K768

Crystals Overview

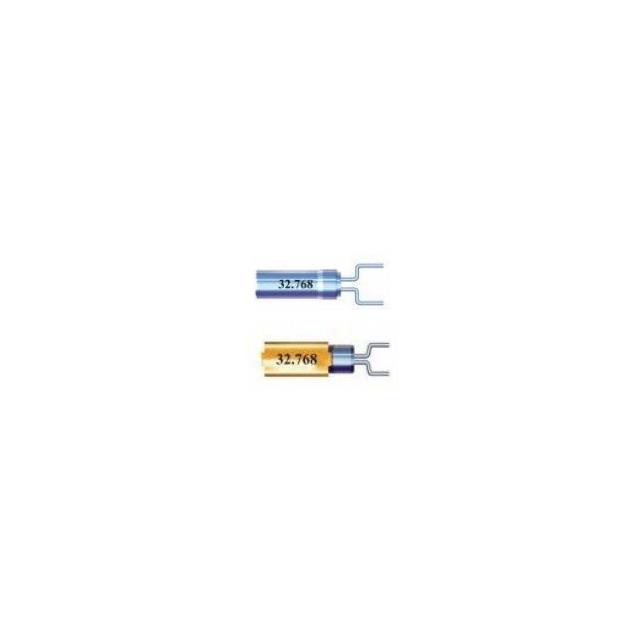

The Meritek MXTOBFI32K768 is a surface-mount kHz crystal oscillator operating at a fundamental frequency of 32.768 kHz. It features a cylindrical can, radial package design suitable for low-profile applications. The component exhibits a frequency tolerance of ±20ppm and a load capacitance of 12.5pF with an equivalent series resistance of 50 kOhms. It operates within a temperature range of -40°C to 85°C and complies with RoHS standards.

Crystals Feature Summary

• Surface mount construction with cylindrical can radial package
• Heat resistant plastic molded design
• Low-profile form factor

Crystals Applications

• Real-time clock circuits
• Microcontroller system clocks
• Portable electronic devices requiring precise timekeeping

Crystals Procurement Notes

Verify the specific ordering suffix against the manufacturer's official datasheet to ensure correct package type and tolerance specifications. Confirm RoHS compliance status directly with the supplier documentation. Check for any recent lifecycle changes or obsolescence notices from Meritek Electronics Corporation before finalizing procurement plans.

Crystals Selection Notes

Select this component for applications requiring a standard 32.768 kHz reference frequency in surface-mount designs. Ensure the PCB layout accommodates the cylindrical can radial footprint. Consider the ±20ppm tolerance sufficient for general timekeeping but verify if tighter stability is required for precision timing applications.

Crystals Part Context

This part belongs to the Meritek MXTO series of kHz crystals. It is designed as a tuning fork type resonator optimized for low-power consumption. The series provides various mounting options including through-hole and surface mount variants to support diverse electronic manufacturing requirements.

Crystals Replacement Considerations

Cross-reference with Meritek MXTPBFI32K768 for through-hole alternatives. Verify pin compatibility and electrical parameters with other 32.768 kHz SMD crystals from different manufacturers if supply constraints exist.
