P5009NL

Pulse Transformers Overview

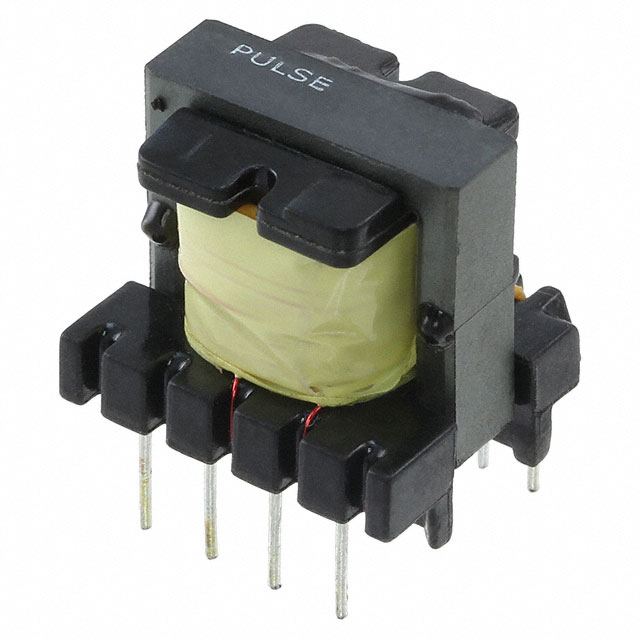

The P5009NL is a pulse transformer manufactured by Pulse Electronics, designed for through-hole mounting. It features a 1:0.1:0.1 turns ratio and supports an input voltage range of 85VAC to 265VAC. The component provides 4000V isolation voltage and delivers 5.5W output power. Operating temperature ranges from -30°C to 110°C. Physical dimensions are 18.20mm length, 16.00mm width, and 17.70mm maximum height. It complies with RoHS-6 standards.

Pulse Transformers Feature Summary

• Through-hole mounting configuration
• High isolation voltage capability
• Wide input voltage range support

Pulse Transformers Applications

• Power supply circuits
• Isolated signal transmission
• Industrial control systems

Pulse Transformers Procurement Notes

Verify the specific datasheet version and mechanical drawings before integration. Confirm that the through-hole footprint matches the target PCB layout. Ensure thermal management strategies accommodate the specified operating temperature range. Check for any recent product change notifications regarding material or dimensional updates.

Pulse Transformers Selection Notes

Select this component when high isolation voltage and wide input range are required in through-hole designs. Consider the physical size constraints due to its larger form factor compared to surface-mount alternatives. Evaluate thermal performance requirements against the 110°C maximum limit. Verify compatibility with the intended switching frequency and power levels.

Pulse Transformers Part Context

This part belongs to Pulse Electronics' transformer portfolio, focusing on isolated power and signal applications. It utilizes through-hole technology, distinguishing it from surface-mount variants. The design emphasizes robust isolation and broad voltage acceptance for diverse industrial environments.

Pulse Transformers Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation.
