PC66.07.0150AQ

Antennas RF Overview

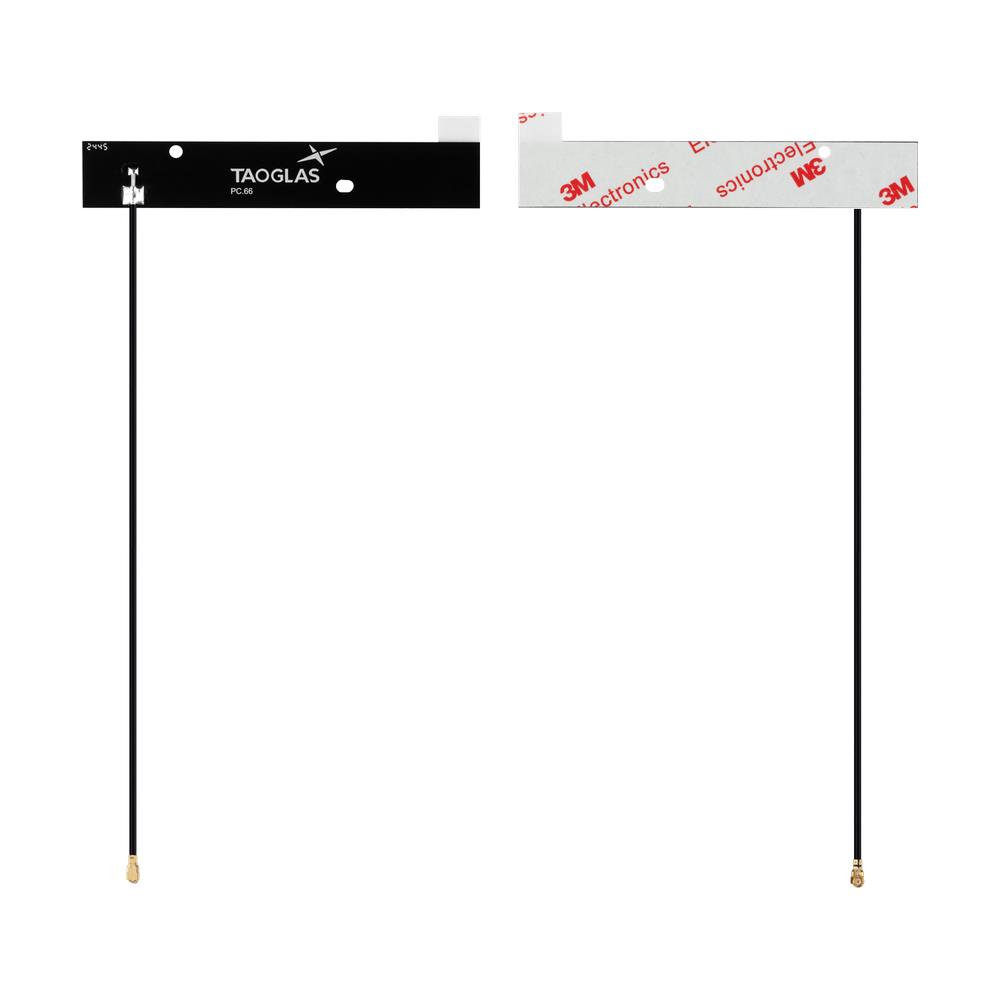

The Taoglas PC66.07.0150AQ is a wideband cellular PCB antenna designed for FR4 substrates, operating across the 600 MHz to 6000 MHz frequency range. It supports multiple wireless standards including 3G, 4G, 5G, LTE, NB-IoT, Cat-M, and WiFi. The component features an I-PEX MHF I connector and measures 90 mm in length by 15 mm in width. It provides a gain of approximately 3.89 dBi with a maximum power handling capacity of 10 W. The antenna is RoHS compliant and suitable for surface mount integration.

Antennas RF Feature Summary

• Supports multi-band cellular communication protocols including 5G, 4G, LTE, and IoT standards
• Integrated I-PEX MHF I connector for direct RF interface connection
• Compact FR4 PCB form factor optimized for embedded device integration

Antennas RF Applications

• 5G and 4G cellular modem modules
• LTE connectivity devices
• NB-IoT and Cat-M enabled sensors
• WiFi-enabled communication hardware

Antennas RF Procurement Notes

Verify the specific connector type and substrate requirements against your design specifications before ordering. Confirm that the I-PEX MHF I interface matches your RF circuit layout. Ensure the physical dimensions of 90x15mm fit within the enclosure constraints. Check for RoHS compliance documentation if required by your regional regulations. Validate the 10W power rating against your system's maximum output power.

Antennas RF Selection Notes

Select this model when a wideband solution covering sub-6GHz cellular bands is required. It is appropriate for designs needing integrated cellular and IoT support without separate antennas. Consider the FR4 substrate compatibility with your PCB stack-up. Evaluate the I-PEX connector preference against other interface options like U.FL or SMA. Ensure the antenna placement allows for adequate ground plane clearance for optimal performance.

Antennas RF Part Context

This component belongs to the PC66 series of wideband cellular antennas from Taoglas Limited. It is engineered specifically for FR4 printed circuit boards, offering a balance between performance and size. The series targets modern mobile and IoT applications requiring broad frequency coverage. It serves as a primary RF front-end solution for compact electronic devices.

Antennas RF Replacement Considerations

Consult official Taoglas documentation for verified substitute part numbers. Cross-reference frequency ranges and connector types to ensure functional equivalence. Verify mechanical dimensions and mounting styles match your existing design constraints.
