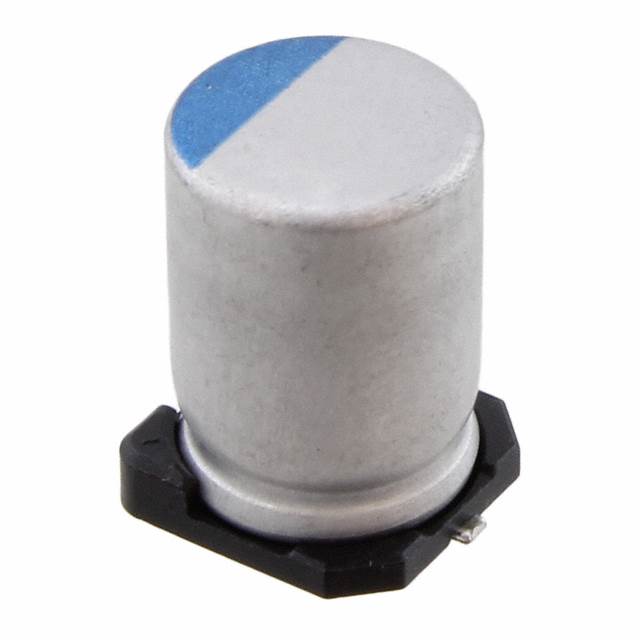

Aluminum - Polymer Capacitors PCX1V560MCL1GS product image

PCX1V560MCL1GS

$3.06

Description：CAP ALUM POLY 56UF 20% 35V SMD
Series：PCX
Mfr：Nichicon
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:75547a4ea4f1 Category: Aluminum - Polymer Capacitors Brand: Nichicon

ChipApex WhatsApp

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

PCX1V560MCL1GS is listed in the Aluminum - Polymer Capacitors range at ChipApex. The manufacturer field lists Nichicon. Its product description is CAP ALUM POLY 56UF 20% 35V SMD. Review the specifications below when checking this part for your BOM.

Aluminum - Polymer Capacitors specifications for PCX1V560MCL1GS

Description：CAP ALUM POLY 56UF 20% 35V SMD
Series：PCX
Mfr：Nichicon
Package：Tape & Reel (TR),Cut Tape (CT)
Type：Polymer
Capacitance：56 µF
Tolerance：±20%
Voltage - Rated：35 V
ESR (Equivalent Series Resistance)：33mOhm
Lifetime @ Temp.：3000 Hrs @ 125°C
Operating Temperature：-55°C ~ 125°C
Ratings：AEC-Q200
Applications：General Purpose
Ripple Current @ High Frequency：2 A @ 100 kHz
Lead Spacing：-
Size / Dimension：0.315" Dia (8.00mm)
Height - Seated (Max)：0.472" (12.00mm)
Surface Mount Land Size：0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting Type：Surface Mount
Package / Case：Radial, Can - SMD
Ripple Current @ Low Frequency：-
Features：-

Aluminum - Polymer Capacitors datasheet and documents for PCX1V560MCL1GS

PCX1V560MCL1GS

Explore related parts through Capacitors, all product categories, ChipApex homepage.

Online and offline orders are supported. If the item is available for online purchase, you can place it in the cart; for wholesale pricing, please contact our product manager for a quote.

Payment Method

Payment methods: T/T, WeChat Pay, credit cards, Google Pay, Apple Pay . Buyer covers shipping, fees, duties, and taxes; contact our product manager if you need a contract/procurement process.

Delivery time

In-stock items usually ship within 24 hours. Otherwise, shipment is arranged 1 to 2 days after the items arrive at our warehouse. Timing depends on destination and shipping method.

Freight calculation

Freight cost depends on destination, package size, and weight . We offer shipping options via DHL, FedEx, UPS, and TNT , and can ship using your freight account upon request.

Mode of Transportation

We ship via DHL, FedEx, UPS, and TNT. If you prefer a specific logistics provider, we can ship using your designated carrier.

Return and Refund

Returns are accepted within 60 days of invoice with RMA approval. Items must be resalable; original invoice and test report are required. No returns for customer errors.

PCX1V560MCL1GS

$3.06
