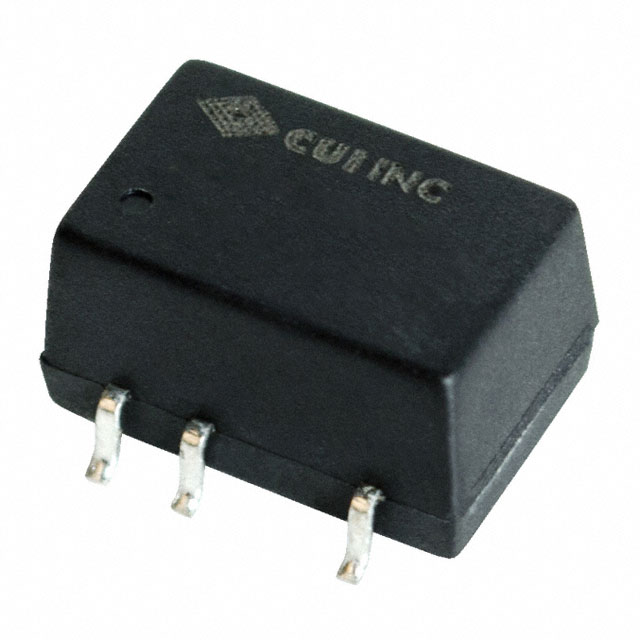

PDS2-S5-S24-M-TR

PDS2-S5-S24-M-TR is listed in the DC DC Converters range at ChipApex. The manufacturer field lists CUI Inc.. Its product description is DC DC CONVERTER 24V 2W. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for PDS2-S5-S24-M-TR

• Description：DC DC CONVERTER 24V 2W
• Series：PDS2-M (2W)
• Mfr：CUI Inc.
• Package：Tape & Reel (TR)
• Type：Isolated Module
• Number of Outputs：1
• Voltage - Input (Min)：4.5V
• Voltage - Input (Max)：5.5V
• Voltage - Output 1：24V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：83mA
• Power (Watts)：2 W
• Voltage - Isolation：1.5 kV
• Applications：ITE (Commercial)
• Features：SCP
• Operating Temperature：-40°C ~ 105°C (With Derating)
• Efficiency：84%
• Mounting Type：Surface Mount
• Package / Case：8-SMD Module, 5 Leads
• Size / Dimension：0.50" L x 0.33" W x 0.29" H (12.7mm x 8.3mm x 7.3mm)
• Supplier Device Package：-
• Control Features：-
• Approval Agency：-
• Standard Number：-
• Grade：-
• Qualification：-

DC DC Converters datasheet and documents for PDS2-S5-S24-M-TR
