PE7005-1

Attenuators Overview

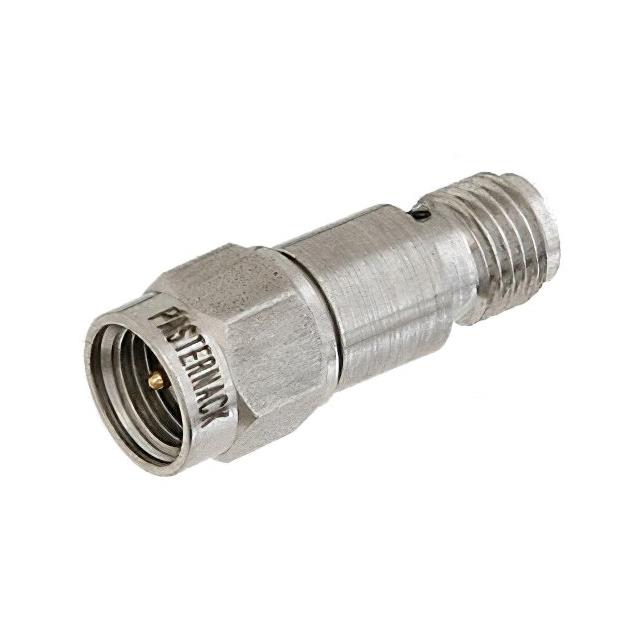

The PE7005-1 is a fixed attenuator module manufactured by Pasternack. It provides an attenuation value of 1 dB with a frequency range spanning from 0 Hz to 18 GHz. The device utilizes SMA connectors and operates within a 50 Ohm impedance system. It features a passivated stainless steel body and supports a power handling capacity of 2 Watts.

Attenuators Feature Summary

• Fixed 1 dB attenuation performance
• Wideband operation up to 18 GHz
• Passivated stainless steel construction

Attenuators Applications

• RF signal level adjustment
• Test and measurement equipment
• Communication systems

Attenuators Procurement Notes

Verify the specific datasheet for detailed electrical parameters before integration. Confirm connector gender and cable length requirements if applicable. Ensure environmental ratings match operational conditions. Check compliance documentation for regulatory adherence.

Attenuators Selection Notes

Select this component for applications requiring precise low-level signal reduction. Consider the 2W power rating for thermal management. Verify SMA interface compatibility with existing circuitry. Evaluate the 18 GHz bandwidth against system frequency needs.

Attenuators Part Context

This part belongs to Pasternack's line of RF attenuators. It serves as a passive component for managing signal strength in high-frequency circuits. The design focuses on durability and consistent performance across a broad spectrum.

Attenuators Replacement Considerations

Consult official substitution lists for compatible alternatives. Verify matching attenuation values and frequency ranges when considering replacements.
