PE7088-15

Overview

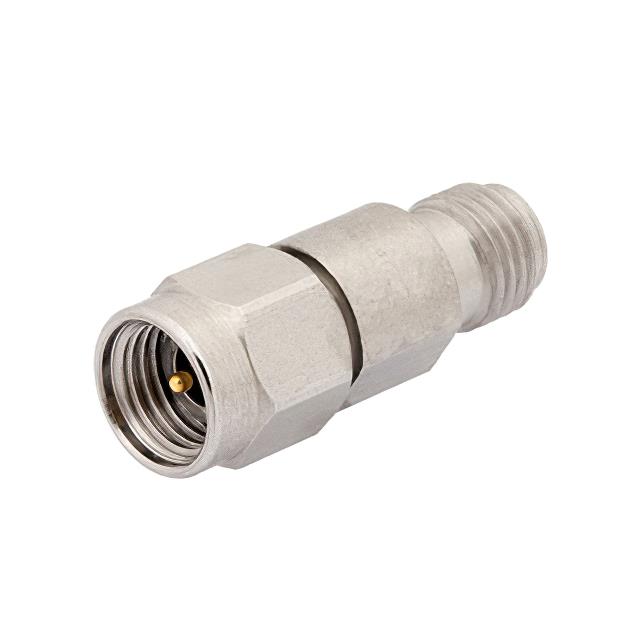

The Pasternack PE7088-15 is a fixed attenuator designed for high-frequency applications, offering an attenuation value of 15 dB. It operates within a frequency range from DC to 40 GHz and supports a maximum power handling capacity of 1 Watt. The component features a 2.92mm connector interface, specifically configured with a male connector on one side and a female connector on the other. Constructed with a stainless steel body, it ensures durability and consistent performance in demanding RF environments.

Feature Summary

• Provides precise 15 dB signal attenuation for RF circuitry
• Operates effectively across a wide bandwidth from DC to 40 GHz
• Features robust 2.92mm male-to-female connector configuration
• Utilizes a durable stainless steel housing for structural integrity

Applications

• High-frequency test and measurement setups
• RF signal conditioning in communication systems
• Calibration equipment requiring precise attenuation
• Microwave circuit design and prototyping

Procurement Notes

Verify compatibility with existing 2.92mm interfaces before integration. Confirm that the 1 Watt power rating aligns with system requirements to prevent damage. Ensure the male-to-female orientation matches the intended connection path. Check for any specific environmental ratings if operating in extreme conditions. Consult official documentation for detailed mechanical dimensions and mounting specifications.

Selection Notes

Select this model when a fixed 15 dB reduction is required at frequencies up to 40 GHz. The 2.92mm interface offers superior performance compared to standard SMA connectors at higher frequencies. Consider the 1 Watt power limit when designing for high-power applications. The stainless steel construction provides reliability in industrial settings. Evaluate space constraints as the unit is compact but requires proper clearance.

Part Context

This component belongs to the family of fixed attenuators produced by Pasternack Enterprises. It is part of a series that includes various attenuation values such as 3 dB, 5 dB, 20 dB, and 30 dB, all sharing similar 2.92mm connector types and frequency ranges. These devices are standardized for use in precision RF applications where stable attenuation is critical.

Replacement Considerations
