PE7162-2

Attenuators Overview

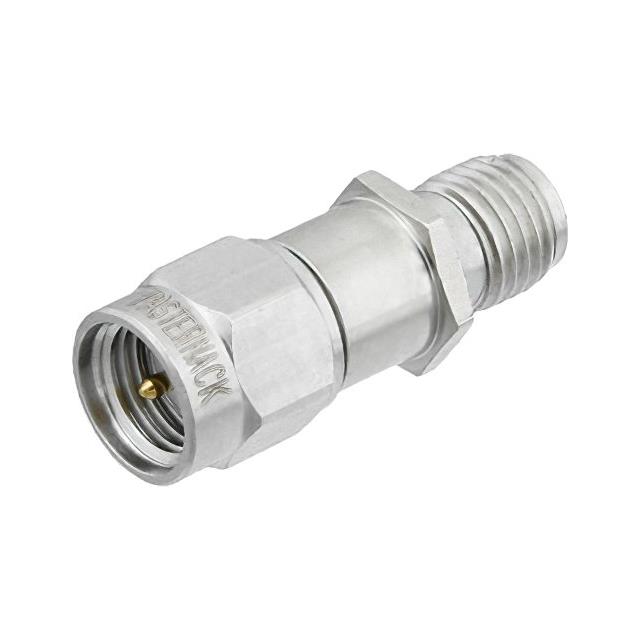

The Pasternack PE7162-2 is a fixed RF attenuator designed for signal management in microwave systems. It features SMA male-to-SMA female connectors and provides a precise attenuation value of 2 dB. The component operates within a frequency range of DC to 6 GHz and handles a power rating of 2 Watts at the stated attenuation level. Constructed with passivated materials, it ensures durability and consistent performance in high-frequency applications requiring stable signal reduction.

Attenuators Feature Summary

• Provides fixed 2 dB attenuation for precise signal level control
• Operates reliably up to 6 GHz frequency range
• Features SMA male to SMA female connector interface
• Rated for 2 Watts power handling capacity

Attenuators Applications

• Microwave circuit signal conditioning
• RF test and measurement setups
• Communication system power leveling

Attenuators Procurement Notes

Verify the specific datasheet revision and mechanical drawings before integration. Confirm that the 2 Watt power rating aligns with your system's thermal requirements. Ensure the SMA connector gender matches your existing infrastructure. Check for any RoHS compliance documentation if required by your manufacturing standards.

Attenuators Selection Notes

Select this model when a low attenuation value of 2 dB is required within the 6 GHz bandwidth. It is suitable for applications needing compact fixed attenuation rather than variable adjustment. Consider the 2 Watt power limit when designing for high-power transmission lines. The SMA interface makes it compatible with standard laboratory and industrial RF equipment.

Attenuators Part Context

This component belongs to Pasternack's line of connectorized attenuators. It serves as a passive device for reducing signal amplitude without introducing significant distortion. The SMA interface is widely used in general-purpose RF applications. It complements other fixed attenuators in the series offering different dB values.

Attenuators Replacement Considerations

PE7162-5

Attenuators FAQ

What is the maximum operating frequency?

The PE7162-2 is rated for operation up to 6 GHz.

What is the power handling capability?

It is rated to handle 2 Watts at the stated attenuation value.
