PE7205-3

Attenuators Overview

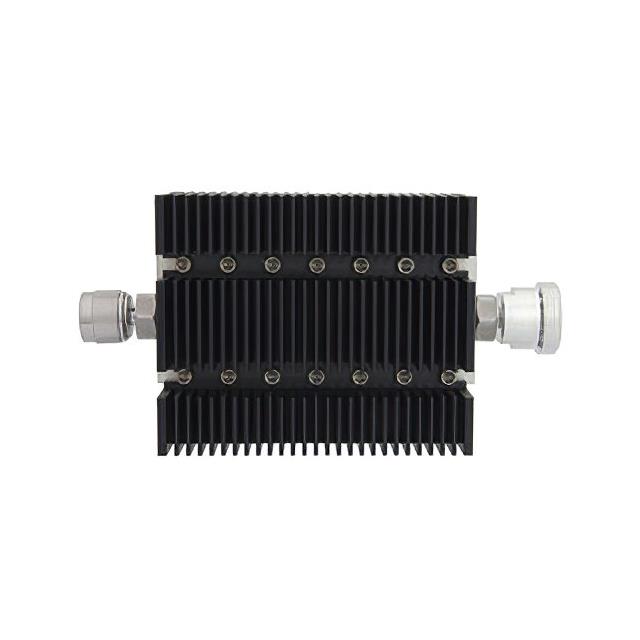

The Pasternack PE7205-3 is a fixed RF attenuator module designed for high-power applications. It provides an attenuation value of 3 dB with a nominal impedance of 50 Ohms. The device operates within a frequency range of 0 Hz to 6 GHz. It is rated for a maximum power handling capacity of 100 Watts, making it suitable for demanding signal processing environments.

Attenuators Feature Summary

• Provides precise 3 dB signal attenuation for RF systems
• Supports continuous wave power levels up to 100 Watts
• Operates effectively across a broad bandwidth from DC to 6 GHz
• Constructed as a robust module for reliable integration

Attenuators Applications

• RF signal conditioning in communication infrastructure
• Test and measurement equipment calibration setups
• High-power microwave system component integration
• Signal level adjustment in antenna feed networks

Attenuators Procurement Notes

Verify the specific datasheet version for the PE7205-3 to confirm exact electrical tolerances and mechanical dimensions prior to procurement. Ensure that the operating environment remains within the specified 0 Hz to 6 GHz frequency range and does not exceed the 100 Watt power rating. Confirm connector types and mounting requirements match the system design specifications to ensure proper integration and performance.

Attenuators Selection Notes

Select the PE7205-3 when a fixed 3 dB attenuation is required at power levels up to 100 Watts. This model is appropriate for systems operating below 6 GHz where stable attenuation characteristics are critical. Consider thermal management solutions if continuous operation near the maximum power rating is expected. Compare against other Pasternack models if different attenuation values or lower power ratings suffice for the application.

Attenuators Part Context

The PE7205-3 belongs to Pasternack's line of RF attenuators, which are essential components for managing signal strength in radio frequency circuits. These modules are engineered to provide consistent performance across wide frequency bands. The product series supports various attenuation values and power ratings to meet diverse engineering requirements in telecommunications and industrial applications.

Attenuators Replacement Considerations

For equivalent attenuation, consider the PE7205-40 which offers 40 dB attenuation but shares similar power and frequency specifications. Verify compatibility with existing circuit designs when substituting components to ensure impedance matching and power handling capabilities remain adequate for the system requirements.
