PEANLP1007

Antennas RF Overview

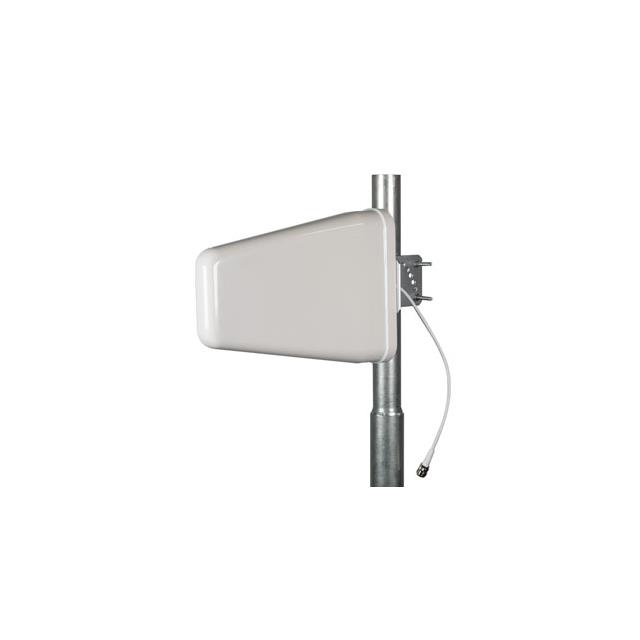

The PEANLP1007 is a directional log periodic antenna manufactured by Pasternack, designed for multi-band operation across the 806-960 MHz and 1710-2500 MHz frequency ranges. It provides a nominal gain of 9 dBi with vertical polarization and features a Type N female connector. The unit includes a mounting bracket and hardware for installation.

Antennas RF Feature Summary

• Directional series antenna design
• Multi-band capability covering 806-960 MHz and 1710-2500 MHz
• Vertical polarization configuration

Antennas RF Applications

• RF communication systems requiring multi-band coverage
• Wireless network infrastructure deployments
• Laboratory RF test and measurement environments

Antennas RF Procurement Notes

Verify that the specific order matches the PEANLP1007 designation to ensure correct frequency bands and connector type. Confirm compatibility with existing mounting structures using the included bracket. Check environmental ratings if outdoor deployment is planned.

Antennas RF Selection Notes

Select this model when vertical polarization and broad bandwidth are required for dual-band operations. Ensure the Type N female interface aligns with system cabling. Consider the directional radiation pattern for focused signal transmission or reception needs.

Antennas RF Part Context

This component belongs to Pasternack's RF antenna portfolio, which includes various directional and omnidirectional solutions. It complements other antennas like the PEWAN1007 series, offering specialized multi-band performance for distinct frequency allocations in wireless applications.

Antennas RF Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Evaluate generic log periodic antennas with matching impedance and connector types if direct replacement is necessary.
