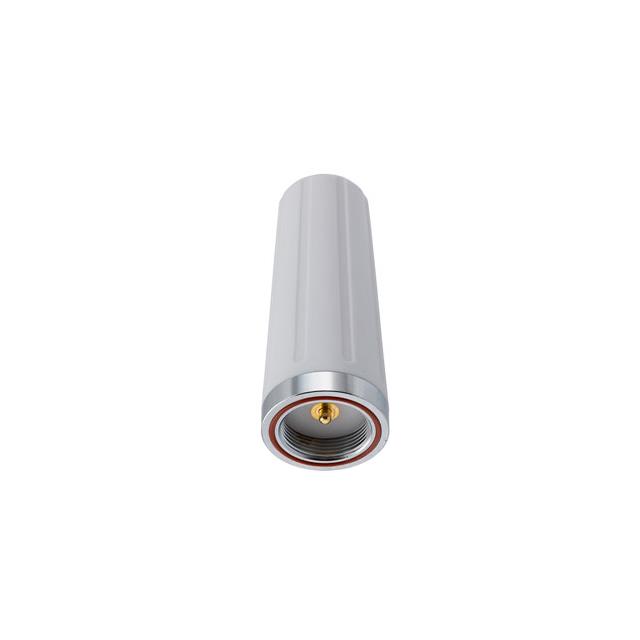

PEANOM1055 is listed in the Antennas RF range at ChipApex. The manufacturer field lists Pasternack. Its product description is 617 to 7125 MHz Wi-Fi 6E Omni An. Review the specifications below when checking this part for your BOM.
Antennas RF specifications for PEANOM1055
- Description：617 to 7125 MHz Wi-Fi 6E Omni An
- Series：-
- Mfr：Pasternack
- Package：Retail Package
- RF Family/Standard：802.15.4, Bluetooth, WiFi
- Frequency Group：Wide Band
- Frequency (Center/Band)：3.871GHz
- Frequency Range：617MHz ~ 7.125GHz
- Antenna Type：Whip, Straight
- Number of Bands：1
- VSWR：2.5
- Return Loss：-
- Gain：5dBi
- Features：-
- Termination：NMO
- Ingress Protection：-
- Grade：-
- Qualification：-
- Mounting Type：Connector Mount
- Height (Max)：4.040" (102.61mm)
- Applications：Bluetooth, Wi-Fi, Zigbee™
- Power - Max：100 W
Antennas RF datasheet and documents for PEANOM1055
Antennas RF Overview
The Pasternack PEANOM1055 is an omnidirectional RF antenna designed for outdoor cellular network applications. It operates within a frequency range of 617 MHz to 7.125 GHz, supporting Wi-Fi 6E, LTE, and 5G bands. The unit features a nominal gain of 3 dBi and utilizes an NMO connector mount for installation. This single-band antenna is engineered for high performance in wireless communication infrastructure.
Antennas RF Feature Summary
- Omnidirectional radiation pattern for consistent signal coverage
- Designed for outdoor cellular network environments
- Supports multiple wireless standards including Wi-Fi 6E and 5G
Antennas RF Applications
- Cellular network infrastructure
- Wi-Fi 6E deployments
- 5G connectivity solutions
Antennas RF Procurement Notes
Verify the specific connector type and mounting requirements against your existing hardware before ordering. Confirm that the operational frequency range aligns with your network's technical specifications. Ensure environmental ratings meet the deployment site conditions. Cross-reference the datasheet for precise mechanical dimensions to validate fitment.
Antennas RF Selection Notes
Select this model when an omnidirectional solution is required for frequencies spanning 617 MHz to 7.125 GHz. The NMO mount facilitates standard automotive or pole installations. Consider the 3 dBi gain level relative to other available options based on coverage distance needs. Validate compatibility with surrounding RF equipment to prevent interference.
Antennas RF Part Context
This component belongs to Pasternack's Omni-Directional Antennas series. It is categorized under RF antennas and serves as a specialized solution for modern wireless communication systems. The product line focuses on providing reliable connectivity for emerging mobile broadband technologies.
Antennas RF Replacement Considerations
No public confirmed substitute part numbers are available in the provided documentation. Consult official manufacturer channels for equivalent models if this specific part number is discontinued or unavailable.
