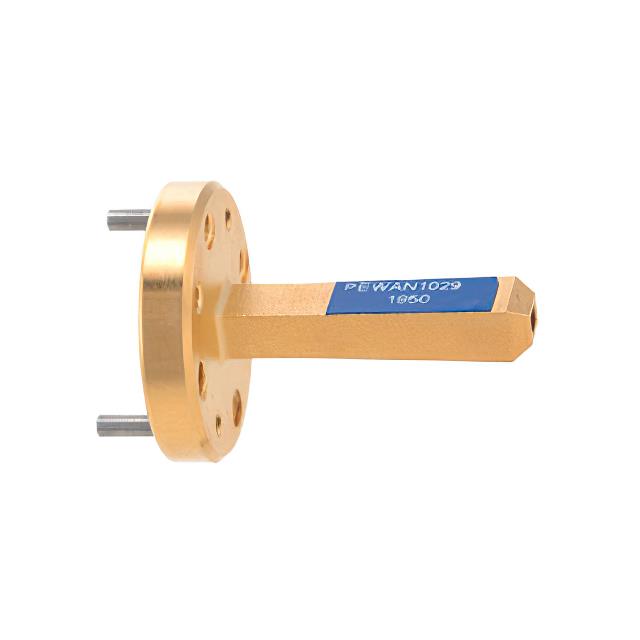

Antennas RF PEWAN1029 product image

PEWAN1029

$779.17

Description：WR-5 Waveguide Standard Gain Hor
Series：-
Mfr：Pasternack
Package：Retail Package

SKU:8f30393804c4 Category: RF Antennas Brand: Pasternack

ChipApex WhatsApp

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

PEWAN1029 is listed in the Antennas RF range at ChipApex. The manufacturer field lists Pasternack. Its product description is WR-5 Waveguide Standard Gain Hor. Review the specifications below when checking this part for your BOM.

Antennas RF specifications for PEWAN1029

Description：WR-5 Waveguide Standard Gain Hor
Series：-
Mfr：Pasternack
Package：Retail Package
RF Family/Standard：General ISM
Frequency Group：SHF (f > 4GHz)
Frequency (Center/Band)：180GHz
Frequency Range：140GHz ~ 220GHz
Antenna Type：Horn
Number of Bands：1
VSWR：1.15
Return Loss：-
Gain：10dBi
Features：-
Termination：-
Ingress Protection：-
Grade：-
Qualification：-
Mounting Type：Waveguide Mount
Height (Max)：1.000" (25.40mm)
Applications：General Purpose
Power - Max：-
