PF-27N36WQ

Alarms, Buzzers, And Sirens Overview

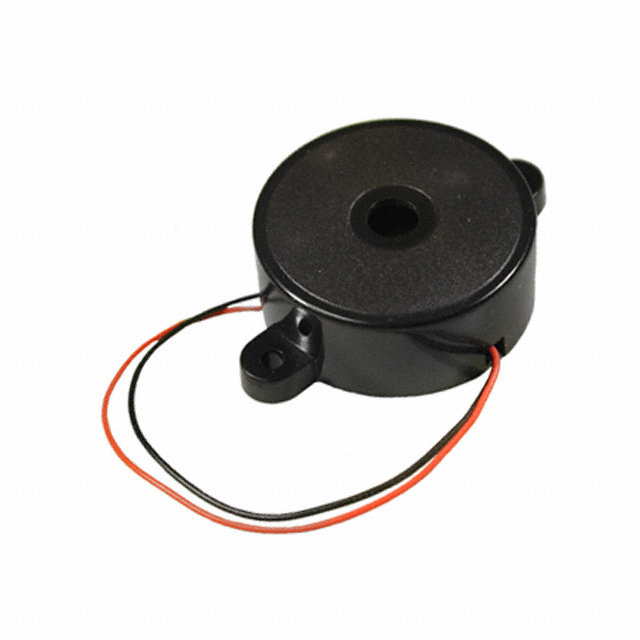

The PF-27N36WQ is an internally driven piezoelectric buzzer from the Mallory Sonalert PK series. It operates on a 12 VDC nominal voltage with a wide range of 3 to 28 VDC. The device produces a continuous tone at 3.5 kHz with a sound pressure level of 90 dBA measured at 12V, 30cm. Electrical characteristics include a current rating of 15 mA. It features wire lead termination and flange mount installation. Physical dimensions are 30 mm diameter by 16 mm height.

Alarms, Buzzers, And Sirens Feature Summary

• Internally driven piezoelectric design for direct connection
• Continuous single-tone audio output capability
• Flange mount configuration for secure panel integration
• Wide operating voltage tolerance for flexible power supply compatibility

Alarms, Buzzers, And Sirens Applications

• Industrial machinery status indication
• Control panel alarm signaling
• Equipment fault detection alerts
• Safety system auditory warnings

Alarms, Buzzers, And Sirens Procurement Notes

Verify that the specific part number matches the required electrical parameters, particularly the 12 VDC nominal voltage and 3.5 kHz frequency. Confirm that the flange mount style and wire lead termination are compatible with the target enclosure design. Ensure compliance with relevant environmental regulations such as RoHS requirements before finalizing procurement orders.

Alarms, Buzzers, And Sirens Selection Notes

Select this component when an internally driven solution is preferred over external drive transducers to simplify circuit design. The 90 dBA output level is suitable for moderate noise environments. Consider the 30 mm diameter size constraint for panel cutouts. Compare against similar models like PK-27N35WQ if slight frequency variations are acceptable for the application.

Alarms, Buzzers, And Sirens Part Context

This unit belongs to the Mallory Sonalert PK series of industrial-grade piezoelectric buzzers. These devices are designed for reliable performance in demanding environments. The series offers various frequencies and mounting options. The PF-27N36WQ specifically provides a standard 3.5 kHz tone commonly used for general alerting purposes in industrial settings.

Alarms, Buzzers, And Sirens Replacement Considerations

• PK-27N35WQ
• PK-27N36WQ

Alarms, Buzzers, And Sirens FAQ

What is the difference between the PF-27N36WQ and PT series transducers?

The PF-27N36WQ is an internally driven buzzer containing its own oscillator, whereas PT series devices are external drive transducers requiring an external signal source.

Can the PF-27N36WQ operate on AC voltage?

No, the PF-27N36WQ is specified for DC operation only, with a rated voltage of 12 VDC and a range of 3 to 28 VDC.
