PPPN172AFCN

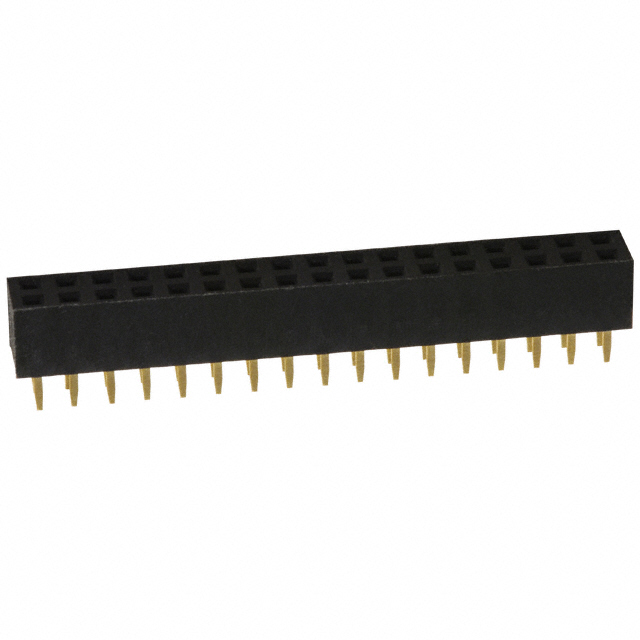

PPPN172AFCN is listed in the Headers, Receptacles, Female Sockets range at ChipApex. The manufacturer field lists Sullins Connector Solutions. Its product description is CONN HDR 34POS 0.079 GOLD PCB. Review the specifications below when checking this part for your BOM.

Headers, Receptacles, Female Sockets specifications for PPPN172AFCN

• Description：CONN HDR 34POS 0.079 GOLD PCB
• Series：-
• Mfr：Sullins Connector Solutions
• Package：Bulk
• Connector Type：Header
• Contact Type：Female Socket
• Style：Board to Board
• Number of Positions：34
• Number of Positions Loaded：All
• Pitch - Mating：0.079" (2.00mm)
• Number of Rows：2
• Row Spacing - Mating：0.079" (2.00mm)
• Mounting Type：Through Hole
• Termination：Solder
• Fastening Type：Push-Pull
• Contact Finish - Mating：Gold
• Contact Finish Thickness - Mating：Flash
• Insulation Color：Black
• Insulation Height：0.169" (4.30mm)
• Contact Length - Post：0.094" (2.40mm)
• Operating Temperature：-40°C ~ 105°C
• Material Flammability Rating：UL94 V-0
• Contact Finish - Post：Gold
• Mated Stacking Heights：-
• Ingress Protection：-
• Features：-
• Current Rating (Amps)：1A
• Voltage Rating：-
