PRPC008SGAN-M71RC

Headers, Male Pins Overview

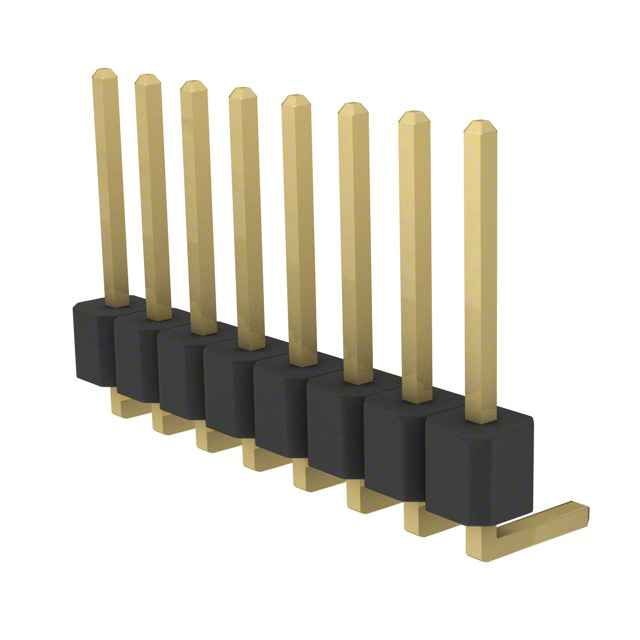

PRPC008SGAN-M71RC is a single-row, unshrouded header connector manufactured by Sullins Connector Solutions. It features eight male pin contacts with a 0.100-inch (2.54mm) pitch. The component utilizes through-hole right-angle termination for PCB mounting. Contacts are constructed from brass with gold plating on both mating and tail sections. The insulator is made of black PBT material rated UL94 V-0. It supports an operating temperature range of -40°C to 105°C and carries a current rating of 3A per contact.

Headers, Male Pins Feature Summary

• Single-row unshrouded header design with right-angle through-hole mounting
• Gold-plated brass contacts ensuring reliable signal transmission
• PBT insulator material providing UL94 V-0 flame resistance

Headers, Male Pins Applications

• General electronic interconnects requiring right-angle board-to-board connections
• Industrial control systems utilizing standard 2.54mm pitch headers
• Consumer electronics assemblies needing compact single-row male pin connectors

Headers, Male Pins Procurement Notes

Verify the exact part number against manufacturer datasheets before ordering. Confirm that the gold plating specification matches application requirements. Check for RoHS compliance status if environmental regulations apply. Ensure PCB layout accommodates the right-angle form factor and specified hole dimensions. Validate thermal limits against operational environment conditions.

Headers, Male Pins Selection Notes

Select this component when a single-row, right-angle male header is required. The 2.54mm pitch suits standard breadboard and prototyping compatibility. Gold plating offers superior corrosion resistance compared to tin alternatives. The unshrouded design allows for flexible mating options but requires careful alignment during assembly. Consider mechanical stability needs for the through-hole soldering process.

Headers, Male Pins Part Context

This part belongs to the PRPC series of rectangular connectors from Sullins Connector Solutions. The series offers various position counts and row configurations. The 'S' indicates a single row, while 'G' denotes gold plating. This specific model provides a compact solution for space-constrained applications requiring robust electrical connectivity in industrial environments.

Headers, Male Pins Replacement Considerations

Direct substitutes must match the 8-position count, 2.54mm pitch, single-row configuration, and right-angle through-hole mounting. Verify identical contact plating and insulator material properties. Cross-reference mechanical drawings for footprint compatibility. Note that generic family members may differ in plating or row count.
